Comfortheat MCD5 Hydronic Programmable Thermostat
MCD5 Operations Manual – Hydronic
A Comfort Heat floor heating system has been installed in your floor. Floor heating warms from the ground up giving you an unparalleled feeling of comfort. This heating system is controlled by an electronic thermostat and floor sensor for optimum temperature control.
PRIOR TO TURNING ON
The sub-floor slab or screed must be fully cured before turning the heating on. Wait at least 3 weeks before turning on and increase the floor temperature gradually over 2-3 days.
WARRANTY
THERMOSTAT & SENSOR – 2 years
TEMPERATURE SETTINGS
- FLOOR TEMPERATURE [CERAMIC] – 23°C ~ 25°C
- FLOOR TEMPERATURE [CARPET] – 23°C ~ 25°C
- FLOOR TEMPERATURE [TIMBER] – 24°C max.
The MICROTEMP RANGE of electronic thermostats is specifically designed for underfloor heating systems. The thermostats are vertically flush mounted and have a 2-pole isolator with a 16A output relay.

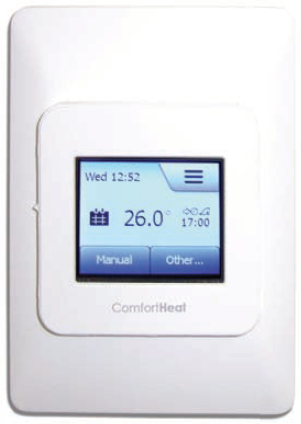

MCD5 – The MCD5 touchscreen thermostat has a built-in programmable time clock to automatically turn the floor heating system ON and OFF at selected times. During the OFF periods, the floor does not turn OFF but programs the floor temperature your selected ‘set back temperature’. The floor is heating when the temperature display turns red.
TECHNICAL DATA – MCD5
- Supply Voltage: 240V AC, 50/60hz
- Output Relay: 16A SPST, 3600W max
- Switching Differential: 0.4 deg C
- Built-in Switch: 2 pole 16A
- Temperature Range: 0/+50 degC
- Clock Function: Up to 7 different 4 or 6 event
- program combinations
- Display: 220 x 176 pixel TFT – color touch
- Housing/protection: IP21
- Dimensions (HxWxD): H 114mm x W84mm x D40mm
- Mounted: Vertical or Horizontal
Factory Default settings:
- weekdays (days 1-5)
- on at 6 am – 25°C
- off (set back) at 8 am – 20°C on at 4 pm – 25°C
- off (set back) at 10.30 pm – 20°C
weekends (days 6-7):
- on at 8 am – 25°C
- off (set back) at 11 pm – 20°C
- Press the ‘MENU’ button
- Press the ‘Arrow’ button until you see ‘Engineer Settings‘ > Press OK
- Press the ‘Arrow’ button until you see ‘Factory Reset‘ > Press OK
- Press the ‘Arrow’ button until you see ‘RESET‘ > Press OK
- Press the ‘MENU’ button
- Press the ‘Arrow’ button until you see ‘User Settings‘ > Press OK
- Press the ‘Arrow’ button until you see ‘4-Event Schedule‘ > Press OK
- Select from either 5:2 6:1 or 7:0 > Press OK > Press Exit
- Press the ‘MENU’ button
- Press the ‘Arrow’ button until you see ‘4-Event Schedule‘ > Press OK
- Set day(s) of the week> Press OK
- Set Morning > Press OK
- Press the ‘Arrow’ button to set Morning ‘ON’ time > Press OK
- Press the ‘Arrow’ button to set Morning ‘ON’ temperature > Press OK
- Set Daytime > Press OK
- Press the ‘Arrow’ button to set Daytime ‘OFF’ time > Press OK
- Press the ‘Arrow’ button to set the Daytime ‘OFF’ temperature > Press OK (normal setting is 20°C – do not set to 0°C)
- Set evening > Press OK
- Press the ‘Arrow’ button to set Evening ‘ON’ time > Press OK
- Press the ‘Arrow’ button to set the Evening ‘ON’ temperature > Press OK
- Set Night > Press OK
- Press the ‘Arrow’ button to set Night ‘OFF’ time > Press OK
- Press the ‘Arrow’ button to set Night ‘OFF’ temperature > Press OK (normal setting is 20°C – do not set to 0°C)
- Repeat the process depending on your weekly configuration
Override of the auto on /off programmed setting.
- Press the ‘MANUAL’ button
- Set temperature> Press OK – Hand will appear with the set temperature
- To change the thermostat back to automatic mode – press the ‘AUTO’ button
Comfort mode will temporarily override auto settings for a single length of time. Once the time expires the thermostat will revert to the auto-programmed setting.
- Press ‘COMFORT’ button
>Set temperature > Press OK
>Set length of time > Press OK
The adaptive function allows the thermostats to predict when the floor heating should be turned on. A thermostat set to 28°C at 6 am will begin to turn on hours before (based on the last few day’s temperatures) in an attempt to be at 28°C at 6 am
Time of use meter
As the weather becomes cooler, your thermostat will predict what time to turn on your system so your floors will always be warm and at your set temperature, as programmed. Set the Adaptive Function to ‘Off’ (default setting for MCD5 is ‘ON’)
- Press MENU button
- Press the ‘Arrow’ button until you see ‘Engineer Settings‘ > Press OK
- Press the ‘Arrow’ button until you see ‘Adaptive Function‘ > Press OK
- Press the ‘Arrow’ button until you see ‘OFF‘ > Press OK
Benefits of Adaptive Function (noninsulin installations)
As the weather becomes cooler, your thermostat will predict what time to turn on your system so your floors will always be warm and at your set temperature, as programmed.
Set the Adaptive Function to ‘Off’ (default setting for MCD5 is ‘ON’)
- Press the MENU button
- Press the ‘Arrow’ button until you see ‘Engineer Settings‘ > Press OK
- Press the ‘Arrow’ button until you see ‘Adaptive Function‘ > Press OK
- Press the ‘Arrow’ button until you see ‘OFF‘ > Press OK
