Cn-hysen HY607 WIFI Digital Thermostat User Manual

Cn-hysen logo

Cn-hysen HY607 WIFI Digital Thermostat

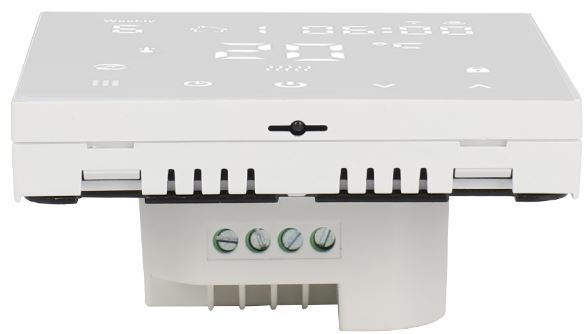

Cn-hysen HY607 WIFI Digital Thermostat pro

Many thanks for your selection of our products and services, and also for your trust and support to us

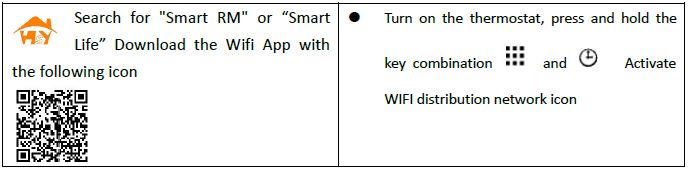

Cn-hysen HY607 WIFI Digital Thermostat 1

Features

Appearance

  • The standard total Size is 86*86mm
  • Touch buttons to make simple operation
  • The visible thickness above the wall is only 15mm86mm
  • hidden box and 60mm European box
  • Display size: 64*64mm
  • Color: white

Functions

  • Including built-in sensor and external sensor
  • 0.5°C accuracy keeps the temperature within the level you set.
  • Children lock to prevent misoperation by children
  • Data memory when power is off.
  • Holiday mode make you enjoy a more comfortable temperature in holiday
  • The temperature of the external sensor can be checked

Product Specifications

  • Power: 90-240Vac 50/60HZ
  • Display accuracy:0.5°C
  • Probe sensor:NTC(10k)1%
  • Contact capacity:3A/250V(WW);16A/250V(WE
  • Working environment temperature:0~90°C
  • Range of temperature adjustment:5~35°C
  • Range of temperature display:0~40°C
  • Insulating condition: Normal environment
  • Running program: Set per 1 week as a cycle
  • Output: Switch relay
  • Installation: Wall mounted or on battery seat
  • Size(mm):86*86*27

Before wiring and installing

  • Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
  • Check the ratings given in the instructions and on the product to make sure the produce is suitable for your application.
  • Installer must be a trained experienced service technician.
  • After installation is complete.check out produce operation as provided in these instructions

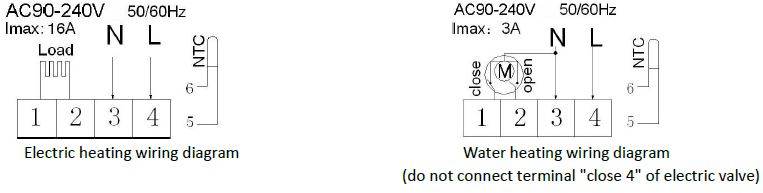

Wiring DiagramCn-hysen HY607 WIFI Digital Thermostat 2 Cn-hysen HY607 WIFI Digital Thermostat 3

DisplaysCn-hysen HY607 WIFI Digital Thermostat 4

Description of icon

  • Cn-hysen HY607 WIFI Digital Thermostat 5Auto mode;run preset program
  • Cn-hysen HY607 WIFI Digital Thermostat 6Temporary manual mode
  • Cn-hysen HY607 WIFI Digital Thermostat 11Manual mode
  • Cn-hysen HY607 WIFI Digital Thermostat 12Clock
  • Cn-hysen HY607 WIFI Digital Thermostat 7Holiday mode, Holiday days and temperature can be set to run in countdown mode
  • Cn-hysen HY607 WIFI Digital Thermostat 8Heating,,icon disappears to stop heating
  • EXT: External NTC sensor
  • Cn-hysen HY607 WIFI Digital Thermostat 9WIFI connection, flashing EZ distribution mode
  • Cn-hysen HY607 WIFI Digital Thermostat 10Cloud icon: flashing AP distribution network mode
  • Cn-hysen HY607 WIFI Digital Thermostat 13  Child lock
  • Cn-hysen HY607 WIFI Digital Thermostat 14Open window

Operation key

NO symbols represent
A Cn-hysen HY607 WIFI Digital Thermostat 21 Turn ON/OFF:Short press to turn on/ turn off
B Cn-hysen HY607 WIFI Digital Thermostat 17 1  Short press Cn-hysen HY607 WIFI Digital Thermostat 17to switch automatic mode and manual mode

2   Turn  on  thermostat, long press  Cn-hysen HY607 WIFI Digital Thermostat 17 for 3-5 seconds to enter into programmable setting

3. Turn off thermostat, long pressCn-hysen HY607 WIFI Digital Thermostat 17 for 3-5 seconds to enter into the advanced A setting

C Cn-hysen HY607 WIFI Digital Thermostat 21 1  Confirm key: use it withCn-hysen HY607 WIFI Digital Thermostat 17key

2  Only short press it to set time

3 Turn on thermostat,long press it for 3-5 seconds to holiday mode setting. Appear

OFF, press Cn-hysen HY607 WIFI Digital Thermostat 18 change to ON,then pressCn-hysen HY607 WIFI Digital Thermostat 21  to confirm opening holiday mode 4 Turn off thermostat ,long pressCn-hysen HY607 WIFI Digital Thermostat 21  to enter into advanced B setting

B Cn-hysen HY607 WIFI Digital Thermostat 22 1  Decrease key

2  Long press to lock /unlock

D Cn-hysen HY607 WIFI Digital Thermostat 23 1  Increase key :

2  Long press to inquire external sensor temperature

3  In the Auto model, pressCn-hysen HY607 WIFI Digital Thermostat 18enter to temporary manual mode

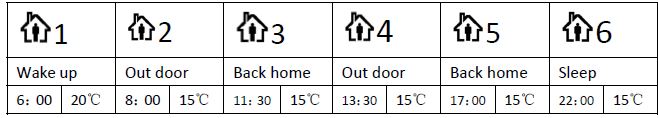

Programmable

5+2 (factory default),6+1, and 7 models 6 times period setting for user choose. In the advanced options choose the model you need, under power-on state, long pressCn-hysen HY607 WIFI Digital Thermostat 17 for 3-5 seconds enter into the programming mode setting, then short pressCn-hysen HY607 WIFI Digital Thermostat 17 choose: hour, minute, time period, press to adjust data, finish setting, about 10 seconds will automatically save and exist.Cn-hysen HY607 WIFI Digital Thermostat 24

Advanced options A
Under turn off state, long pressCn-hysen HY607 WIFI Digital Thermostat 17 for 3-5 seconds to access the advanced A setting. From A1 to AE, short pressCn-hysen HY607 WIFI Digital Thermostat 17 to choose the option, and adjust data byCn-hysen HY607 WIFI Digital Thermostat 18, short pressCn-hysen HY607 WIFI Digital Thermostat 17 to switch next option. Remain about 5 seconds after finishing setting will quit setting

NO Setting Options Data Setting Function Factory Default
A1 Measure Temperature Calibration -9-+9℃ 0.5℃ Accuracy Calibration
A2 Temperature          control

return difference setting

0.5-2.5℃ 1℃
A3 Children lock setting 0:half lock 1:full lock 0


A4

Power function with memory 0:Power with memory function 1:Shutdown power after power off 2:Shutdown power after power on

0



A5



Backlight sleep brightness

0: 0% of brightness

1: 50% of brightness

2: 100% of brightness



1

A6 Weekly        programming selection 0: 5+2      1:6+1 2 :7 0
A7 Setting          temperature lowest limit 1-10℃ 5℃
A8 Setting          temperature

highest Limit

20-70℃ 35℃


A9

Protection temperature of low 1 :1-10℃

2:Exceed 10℃, screen display, Low temperature protection was cancelled.



5



AA



Protection temperature



of



high

1::35-70℃

2: low than 35 ℃ , screen display ,high temperature protection was canceled



45

AB Return different for high temperature protection 1-9 2


AC

Running temperature of open window function 1:10-20℃

2: low 10℃,screen display ,open window function was canceled



15

AD Running time of open window function 10-20 min 10
AE Reset Long press until whole display

Advanced options B
Under turn off state, long press for 3-5 seconds to access the advanced B setting

NO. Setting Options Data Setting Function Factory Default
BN Choose sensor N1: only inner sensor N2: only external sensor N3: both sensor N1
BC Descaling function 0: closed              1: open 0
BO version V1.0 1.0

Return difference: limit valve of the external sensor is 45℃ for factory default (A6), and the value of the external sensor control return difference (A3) is 2. when the temperature rise to 45℃, the relay stops working and will remind the high-temperature production alarm. If the temperature decline to 43℃relay continue to work and the heating alarm will be relieved. (it can be operated, only when the indoor temperature is lower than setting temperature )

Sensor fault display: please choose the correct working way of the built-in and external sensor, if choose wrongly or sensor fault (breakdown), “E1” or “E2” will be displayed on the screen. The thermostat will stop heating until the fault is eliminated

Warranty

We offer a warranty of 18 months, from the sales day. The products of our company can have a lifetime warranty,if it is not the quality problems, or beyond the warranty period, we will charge for the after-sale service.
