Cn-hysen HY08WE-1 Programmable Thermostat fea

Cn-hysen HY08WE-1 Programmable Thermostat User Manual

Cn-hysen logo

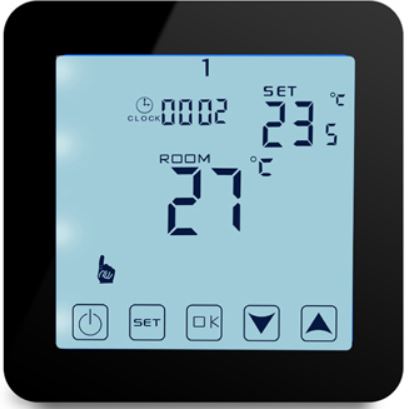

Cn-hysen HY08WE-1 Programmable Thermostat

Cn-hysen HY08WE-1 Programmable Thermostat pro

Product Specifications

  • Power source:100-240VAC 50/60HZ
  • Display accuracy:0.5°C or 1°F
  • Probe sensor:NTC(10k)1%
  • Contact capacity:3A/250V(WW) 16A/250V(WE)
  • Working environment temperature:0~50°C/32~122°F
  • Range of temperature adjustment:5~35°C/41~95°F
  • Range of temperature display:0~40°C/32~104°F
  • Output:Switch relay
  • Insulating condition:Normal environment
  • Running program: Set per 1 week as a cycle
  • Installation:Wall mounted or on battery seat
  • Size(mm):130*90*17

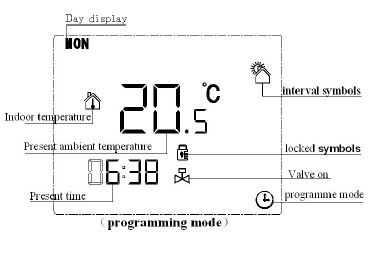

Displays&Buttons

Cn-hysen HY08WE-1 Programmable Thermostat 1

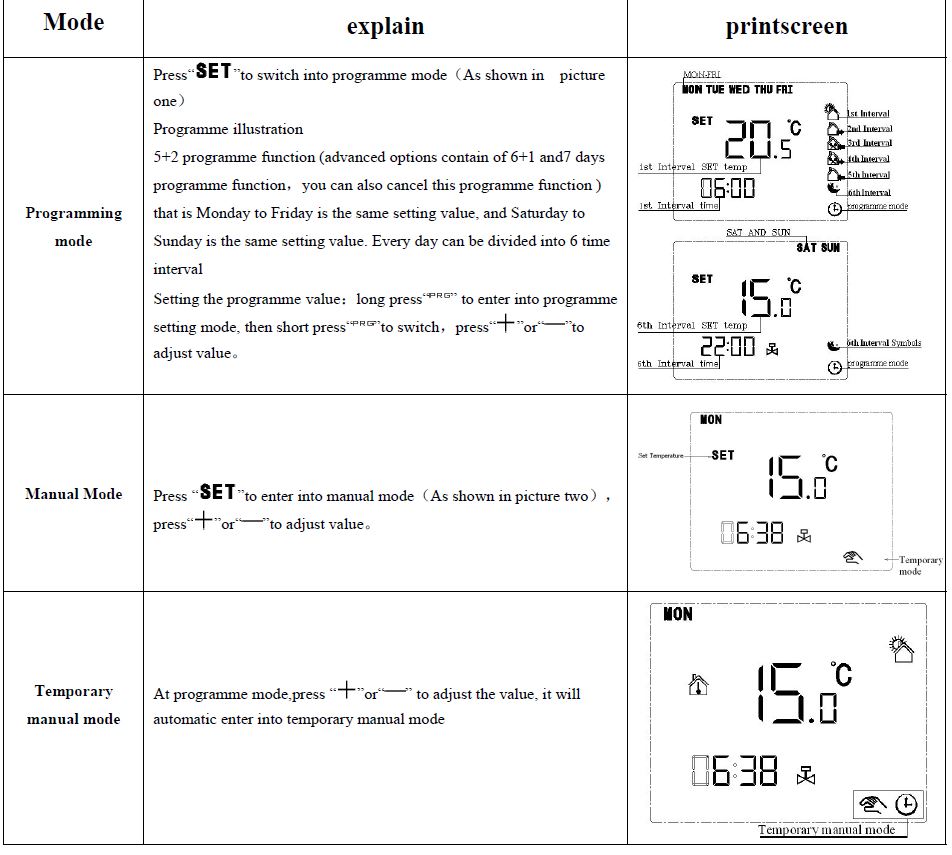

Operation KeyCn-hysen HY08WE-1 Programmable Thermostat 2

Run Mode

Factory Preset Mode



Interval

Monday to

Friday

the default

value

Saturday and

Sunday

the default

value

1st 06:00-08:00 20°C 06:00-08:00 20°C
2nd 08:00-11:30 10°C 08:00-11:30 20°C
3rd 11:30-13:30 18°C 11:30-13:30 20°C
4th 13:30-17:00 10°C 13:30-17:00 20°C
5th 17:00-22:00 20°C 17:00-22:00 20°C
6th 22:00-06:00 18°C 22:00-06:00 18°C

Cn-hysen HY08WE-1 Programmable Thermostat 3

Cn-hysen HY08WE-1 Programmable Thermostat 4

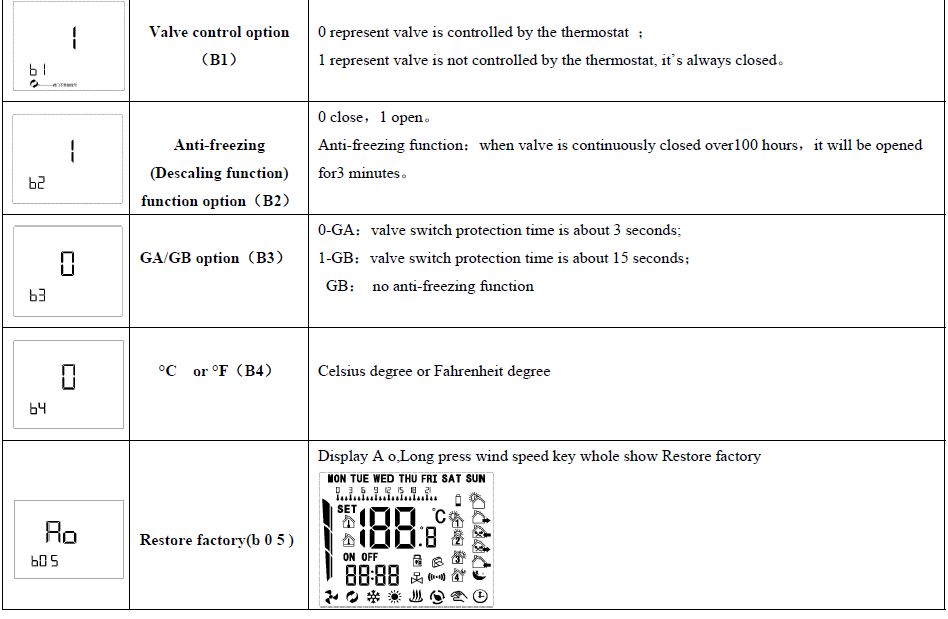

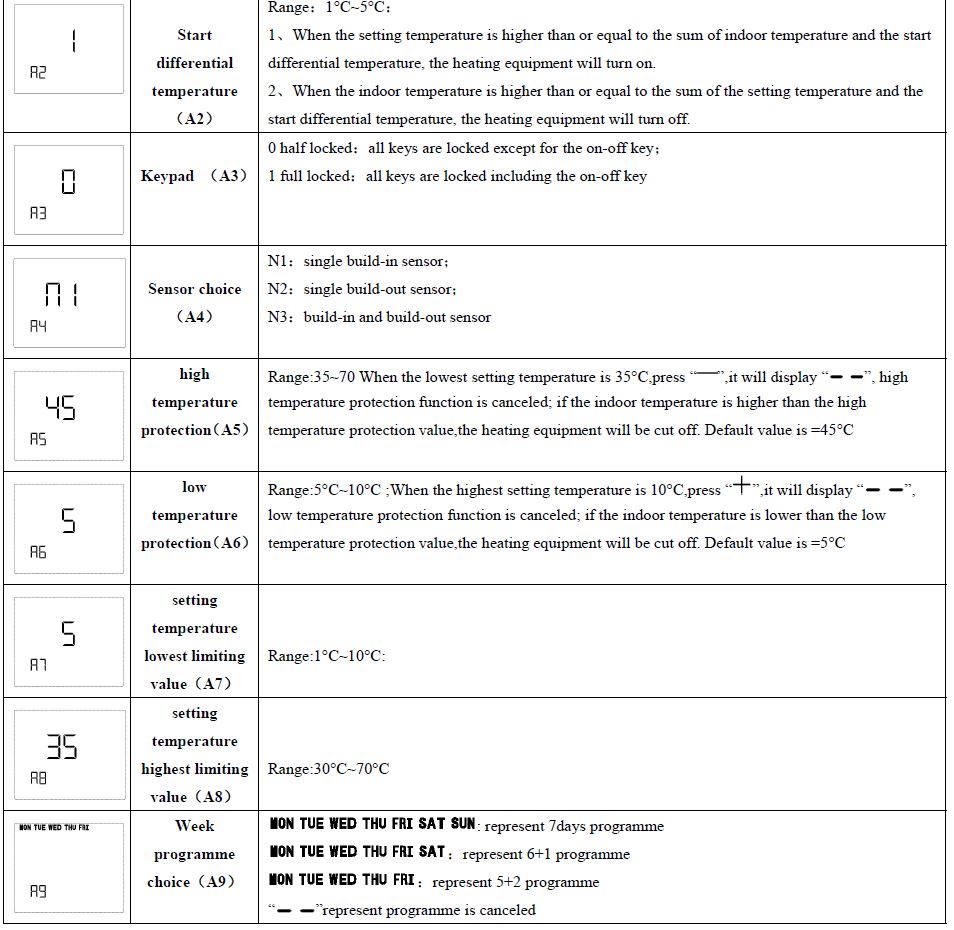

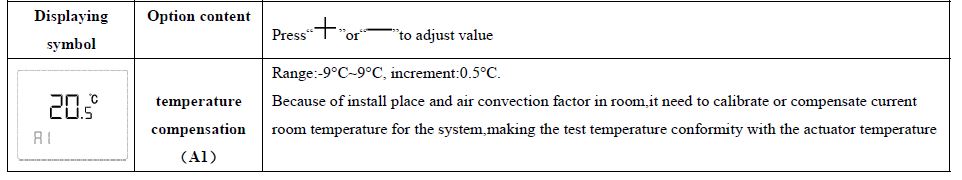

Advanced options(Shutdown State)

MODE 1:Cn-hysen HY08WE-1 Programmable Thermostat 5 Cn-hysen HY08WE-1 Programmable Thermostat 6

MODE 2:

Cn-hysen HY08WE-1 Programmable Thermostat 7 Cn-hysen HY08WE-1 Programmable Thermostat 8

Cautions on Installation and Use

  • To prevent the thermostat display from high fluctuation, special treatment has been made to the program. Therefore, it is normal that the thermostat cannot immediately display a sudden change in temperature.
  • The thermostat was installed 1.5m above the ground.
  • For the thermostat installed, please take care not to install it to the wall corner, door/window side or behind the door or in such unheated areas as the exterior wall. Avoid hot/cold air ducts, radiators, flue, or thermal pipes.
  • If you have any problem with the installed , please contact our company hymen, we will make a demonstration for you
  • Only professional technicians are permitted to open the transmitting and receiving box of the thermostat for installation. When installing the power supply, make sure that the power cable is well insulated.
  • The thermostat is an unrepairable product. The user shall not open the internal circuit board.
  • Before installing the thermostat, make sure that the system is disconnected. The maximum voltage of the system shall meet the requirements specified in the Instruction Manual (Max. AC Voltage: 250V).

Wiring Illustration

Wiring Terminal Remarks
1 NC (Normally-Closed point)
2 NO (Normally-Open point)
3 N:AC Neutral
4 L:AC Live
5 NTC
6 NTC
RS485
RS485

Cn-hysen HY08WE-1 Programmable Thermostat 9

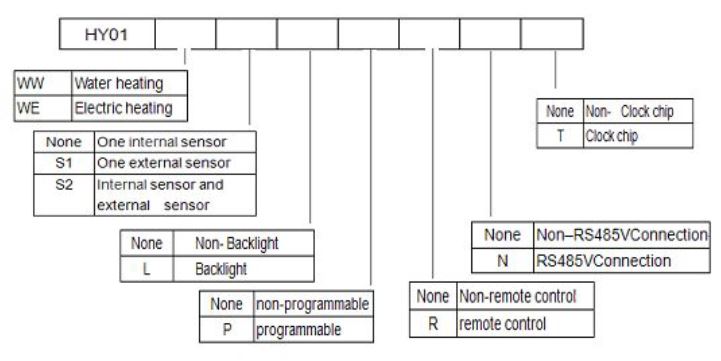

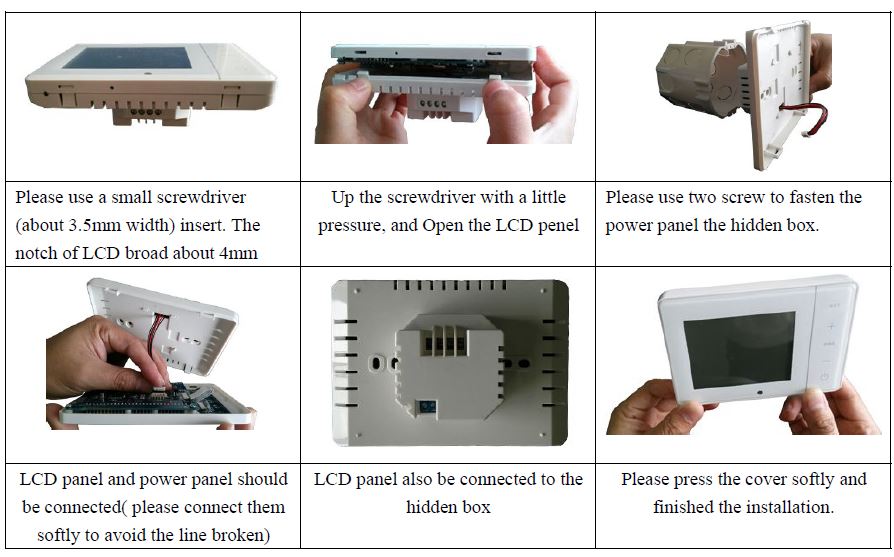

PRODUCT ORDERING INFORMATIONCn-hysen HY08WE-1 Programmable Thermostat 10 Cn-hysen HY08WE-1 Programmable Thermostat 11
