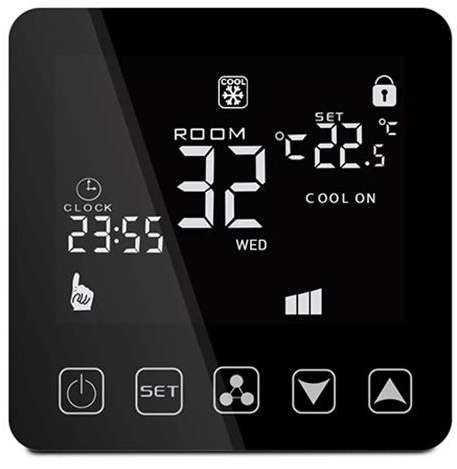

Cn-hysen HY08AC WIFI Fan Coil Unit ThermostatCn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-PRODUCT

HY08AC WIFI fan coil unit thermostat manual

Application

HY08AC series fan coil thermostat is suitable for controlling central air conditioning and fan coil unit. By comparing the indoor temperature and setting temperature, to adjust fan coil unit and turn on /off electric valve . to realize adjust temperature and saving energy purpose.HY08AC adopts microcomputer control technology, large-screen display, and have following display status: working state (cooling, heating, ventilation), fan speed (high, medium, low, automatic), indoor temperature, setting temperature, clock, seven days and four time periods Time programming, timing switch, etc.

Technical data

  • Voltage: AC200~240V,
  • Current: 3A
  • Accuracy: ±0.5ºC
  • Setting range: 5ºC – 35ºC
  • Sensor: NTC(10k)1%
  • Size: 86 * 86mm
  • Output: On/off type
  • IP: IP20
  • Display temperature range: 0~70°C
  • work environment: -10~60°C
  • Mounted: in-the-wall typeCn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-1

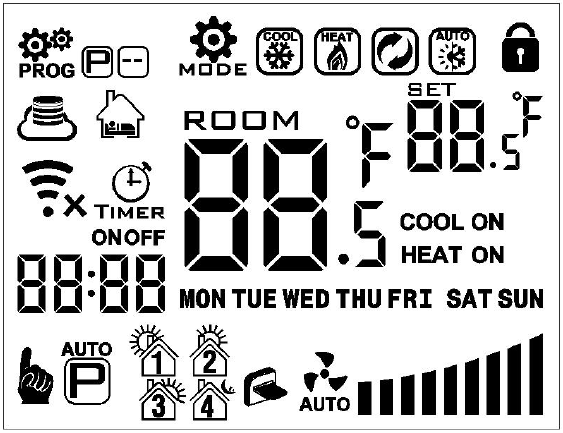

ButtonCn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-6

Cn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-3WIFI connected, If flashing, then matching wifi mode
Cn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-4: WiFi disconnection
Cn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-5: cloud icon, if flashing,then enter AP mode

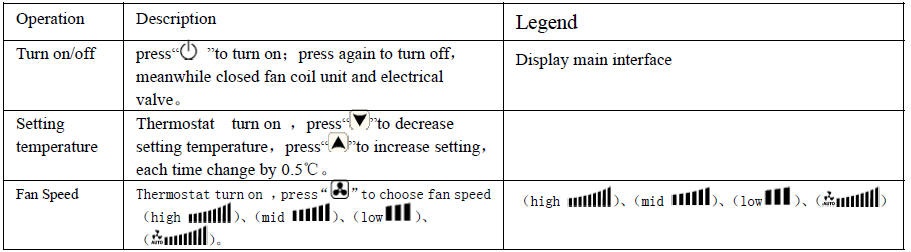

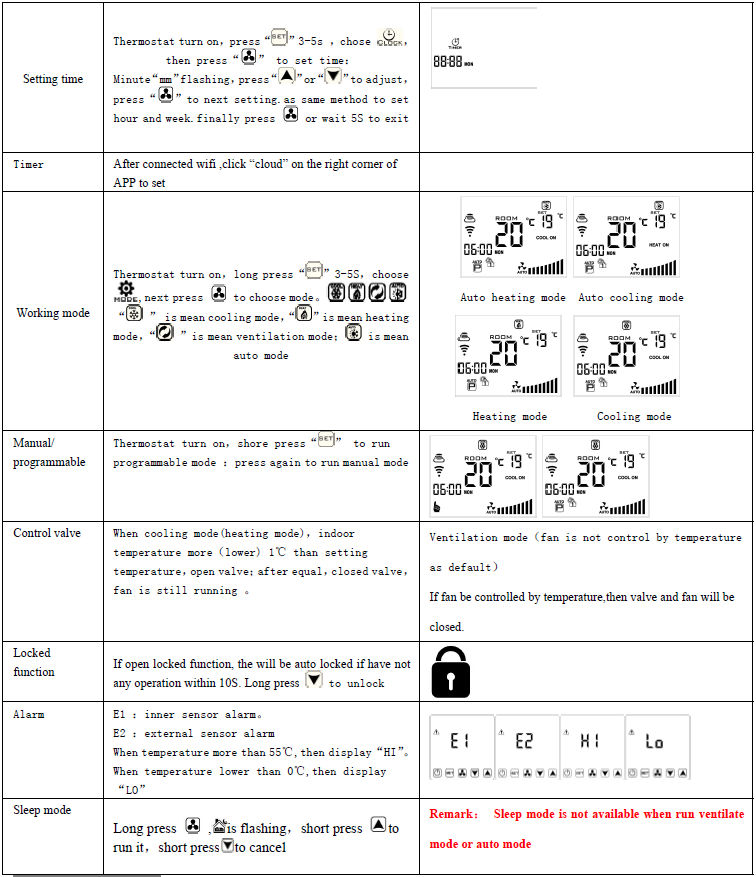

OperationCn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-6 Cn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-7

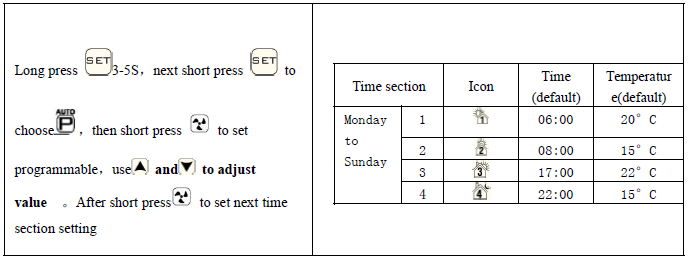

Set ProgrammableCn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-8

Advance setting

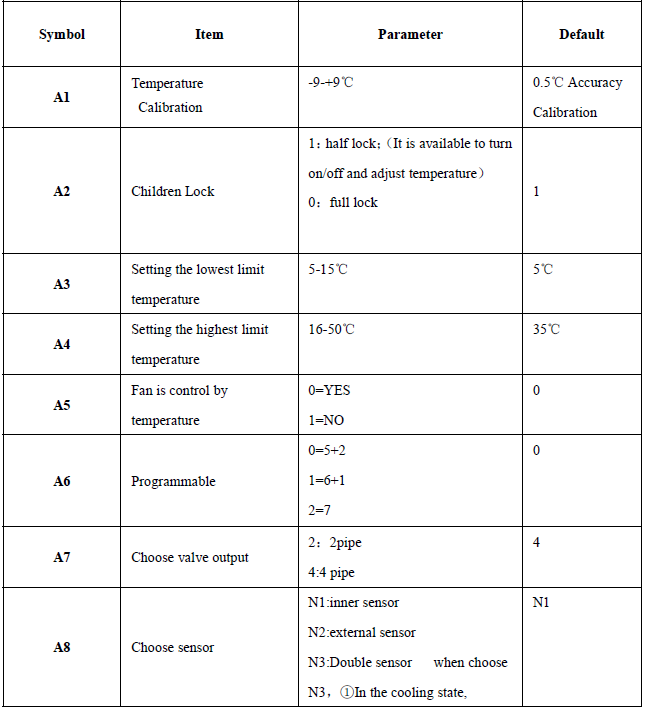

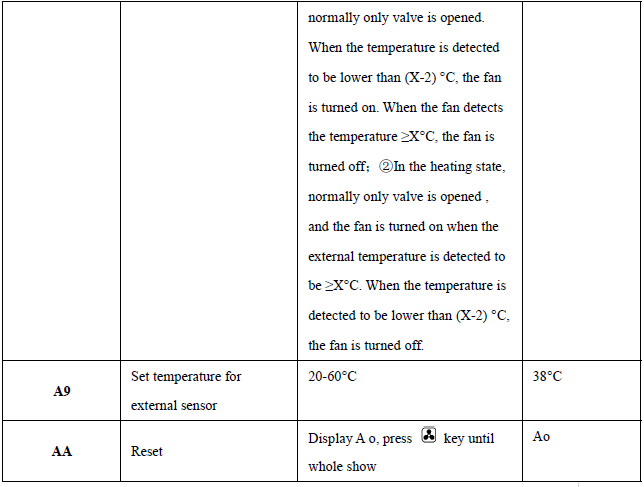

Turn off the thermostat, long press Cn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-105S to enter press“Cn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-11” or “Cn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-11”to set the item Short pressCn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-12 to set the next itemCn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-9 Cn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-13 Cn-hysen HY08AC WIFI Fan Coil Unit Thermostat User Manual-FIG-14

Cautions on Installation:

  1. To prevent the thermostat display from high fluctuation, special treatment has been made to the program. Therefore, it is normal that the thermostat cannot immediately display a sudden change in temperature.
  2. The thermostat was installed 1.5m above the ground.
  3. For the thermostat installed, please take care not to install it to the wall corner, door/window side or behind the door or in such unheated areas as the exterior wall. Avoid hot/cold air ducts, radiators, flues or thermal pipe
  4. When installing the power supply, make sure that the power cable is well insulated.
  5. Don’t open the internal circuit board..

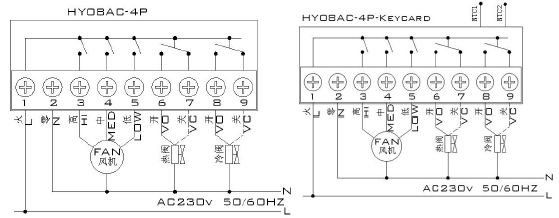

  6. HY08AC series thermostat design for the standard 75x75x 35mm wall mount box installed. Follow the instructions to open the rear cover base, mount it on the wall and wire it.
  7. Before installing the thermostat, make sure that the system is disconnected. The maximum voltage of the system shall meet the requirements specified in the Instruction Manual (Max. AC Voltage: 250V).
