HY01WW Thermostat User Manual

Many thanks for your selection of our products and services, and also for your trust and support to us.

Product Specifications

  • Power source :100-240VAC 50/60HZ
  • Display accuracy::0.5°C or 1°F
  • Probe sensor::NTC(10k)1%
  • Contact capacity::3A/250V(WW)
  • Working environment temperature::0~50°C/32~122°F
  • Range of temperature adjustment::5~35°C/41~95°F
  • Range of temperature display::0~40°C/32~104°F
  • Output: Switch relay
  • Insulating condition: Normal environment
  • Running program: Set per 1 week as a cycle
  • Installation: Wall mounted or on battery seat
  • Size(mm):130*90*17

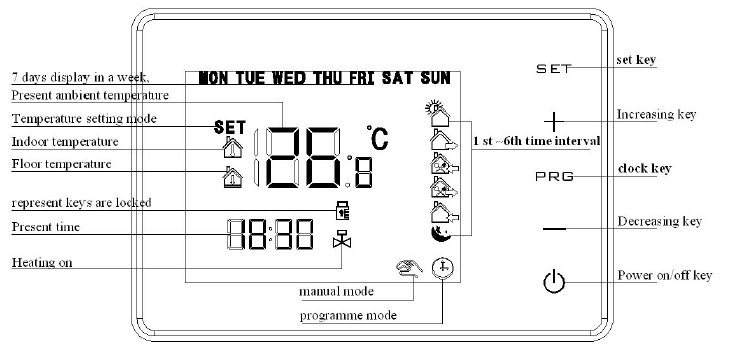

Displays & ButtonsCn-hysen HY01WW WIFI Digital Thermostat User Manual-fig-1

Operation KeyCn-hysen HY01WW WIFI Digital Thermostat User Manual-fig-2

Run Mode

Factory Preset ModeCn-hysen HY01WW WIFI Digital Thermostat User Manual-fig-3 Cn-hysen HY01WW WIFI Digital Thermostat User Manual-fig-4

Advanced options

Advanced options can be classified to two sets

MODE 1:

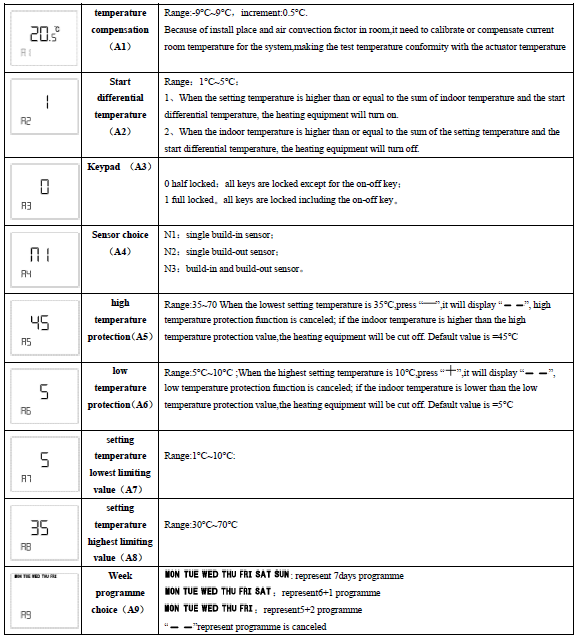

Hold down SET and+at the same time for 3 seconds,it will display A1-A9, then press SET to switch between these optionsCn-hysen HY01WW WIFI Digital Thermostat User Manual-fig-5 Cn-hysen HY01WW WIFI Digital Thermostat User Manual-fig-6

MODE 2:

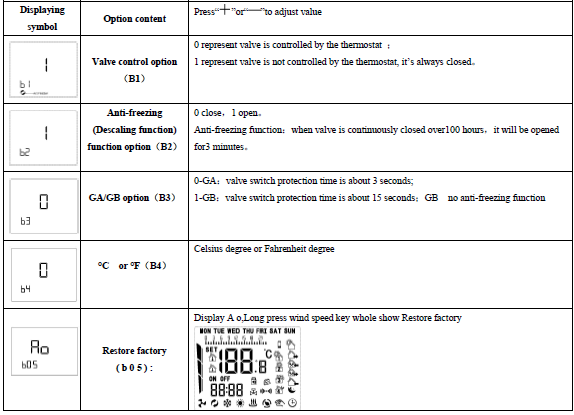

At power off state, hold down “PRG” and “_”at the same time for 3 seconds it will display B1-B3,then press “SET” to switch between these optionsCn-hysen HY01WW WIFI Digital Thermostat User Manual-fig-7

Cautions on Installation and Use:

  1. To prevent the thermostat display from high fluctuation, special treatment has been made to the program. Therefore, it is normal that the thermostat cannot immediately display a sudden change in temperature.
  2. The thermostat was installed 1.5m above the ground.
  3. For the thermostat installed, please take care not to install it on the wall corner, door/window side or behind the door, or in such unheated area as the exterior wall. Avoid hot/cold air ducts, radiators, flue, or thermal pipes.
  4. If you have any problem for the installation,please contact our company hymen, we will make a demonstration for you
  5. Only professional technicians are permitted to open the transmitting and receiving box of the thermostat for installation. When installing the power supply, make sure that the power cable is well insulated.
  6. The thermostat is an unrepairable product. The user shall not open the internal circuit board.
  7. Before installing the thermostat, make sure that the system is disconnected. The maximum voltage of the system shall meet the requirements specified in the Instruction Manual (Max. AC Voltage: 250V).

Wiring Illustration

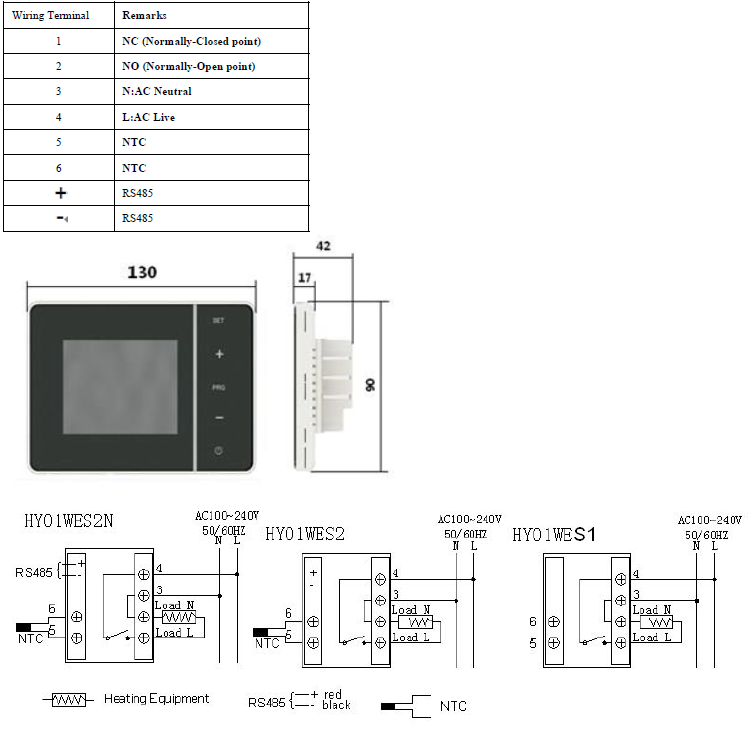

  1. Wiring TerminalsCn-hysen HY01WW WIFI Digital Thermostat User Manual-fig-8

Warranty:
We offer a warranty of 12 months, from the sales day. The products of our company can have a lifetime warranty, if it is not the quality problems, or beyond the warranty period, we will charge for the after-sale service.

PRODUCT ORDERING INFORMATIONCn-hysen HY01WW WIFI Digital Thermostat User Manual-fig-9

REFERENCE:
