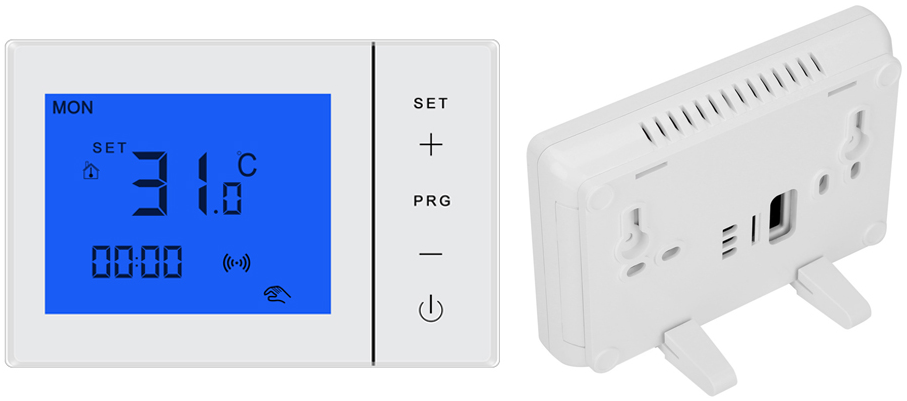

Cn-hysen HY01RF 7-Days Programmable Thermostat
Preface
HY01RF/MRF (with-wire /radio frequency / multi-channel RF) series are room thermostats with 7 days programmable function. This system can completely control the boiler or heating system according to the program preset when out of the factory or set by the customers themselves. The controller with electricity supplied by the batteries can be put anywhere in the ordinary room, which makes the work and life of the installers and the customers become more simple and more comfortable. For the HY01RF model, the receiver of this device is connected directly to the hang boiler or the other heating systems. The transmitter adopts special radio signal and receiver communication with characteristics of strong wall penetration, stable communication, no interference and low electric consumption. The HY01MRF model can control independently different temperatures in the maximum 4 rooms by the multi-channel RF. The damager of radicalization to the body is lower than using a radiogram or TV set.
This product has the following characteristics
- Heating control
- programming function of 5 +2 weeks (advanced settings, you can select 6 +1 and 7-day programming function also can cancel the programming function ),It has 6 setting times for a day 2 sets of permanent programs (factory setting program and self-setting program)
- Large LCD display
- The deadzone temperature difference is adjustable between off and on;
- Allowable to calibrate the temperature display;
- antifreeze temperature;
- Suitable for the control and energy saving of wall-mounted boilers, condensation boilers, and individual household mearsuring heating system;
- It can realize the function of one receiver controlling many sub-devices and many rooms at the same time;
- Display adjustable between ℉and℃
- Only need 2 size AA 1.5V batteries for the power supply;.
- Three transmission modes for selection, i.e. wired, wireless or multi-channel transmission.
- Fast and Simple installation.

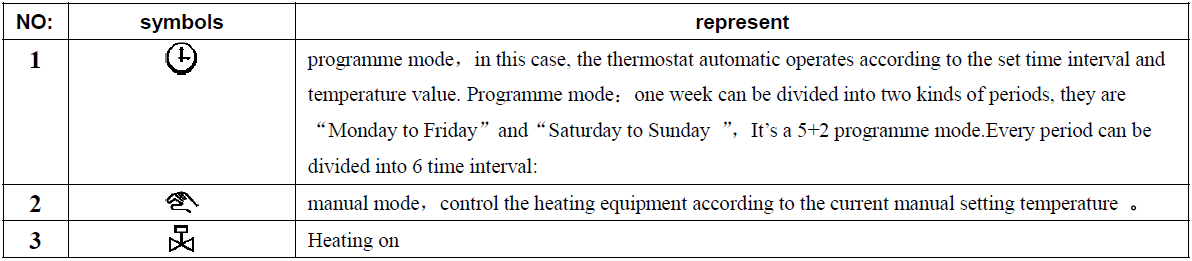

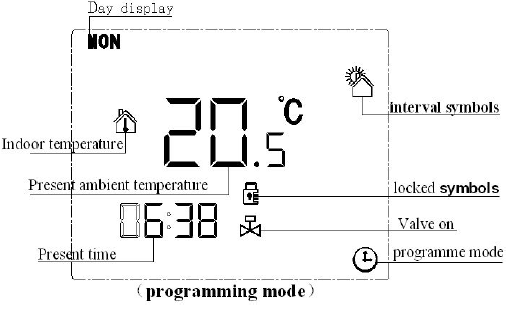

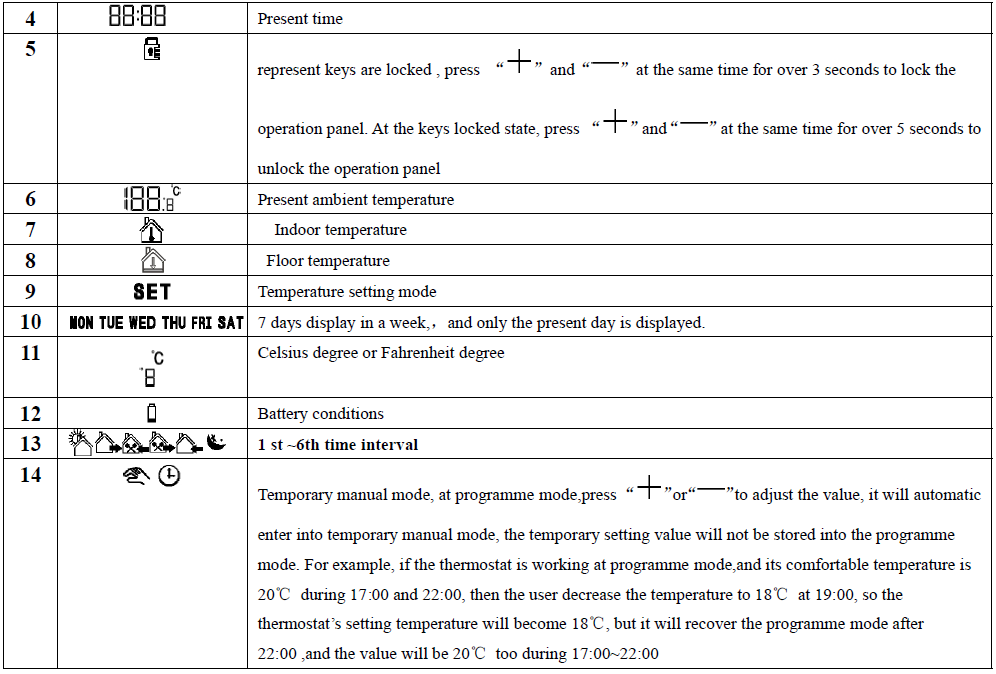

Display screen symbols

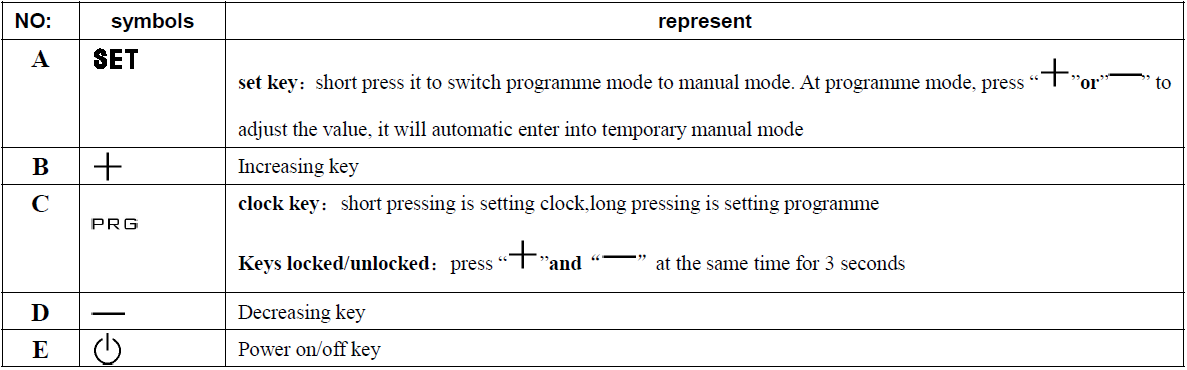

Operation Key
Product Specifications
- Power: twoAA* 1.5V alkaline batteries
- Display accuracy: 0.5℃or1℉
- Probe sensor: NTC(10k)1%
- Contact capacity: 5A/250V ;16A/250V;
- Working environment temperature: 0~50°C/32~122°F
- Range of temperature adjustment: 5~35°C/41~95°F
- Range of temperature display: 0~40°C/32~104°F
- Output: Switch relay
- Insulating condition: Normal environment
- Running program: Set per 1 week as a cycle
- Frequency:433MHZ(RF/MRF)
- Wireless transmission distance: Indoor 16/50M,outdoor 200M
- Installation: Wall mounted or on battery seat
- Size(mm):130*90*27
Scope of Control Applications
- Control of wall-mounted boiler
- Control of Thermal Actuator or electromagnetic valve
- Control of water pump;
- Ventilation control

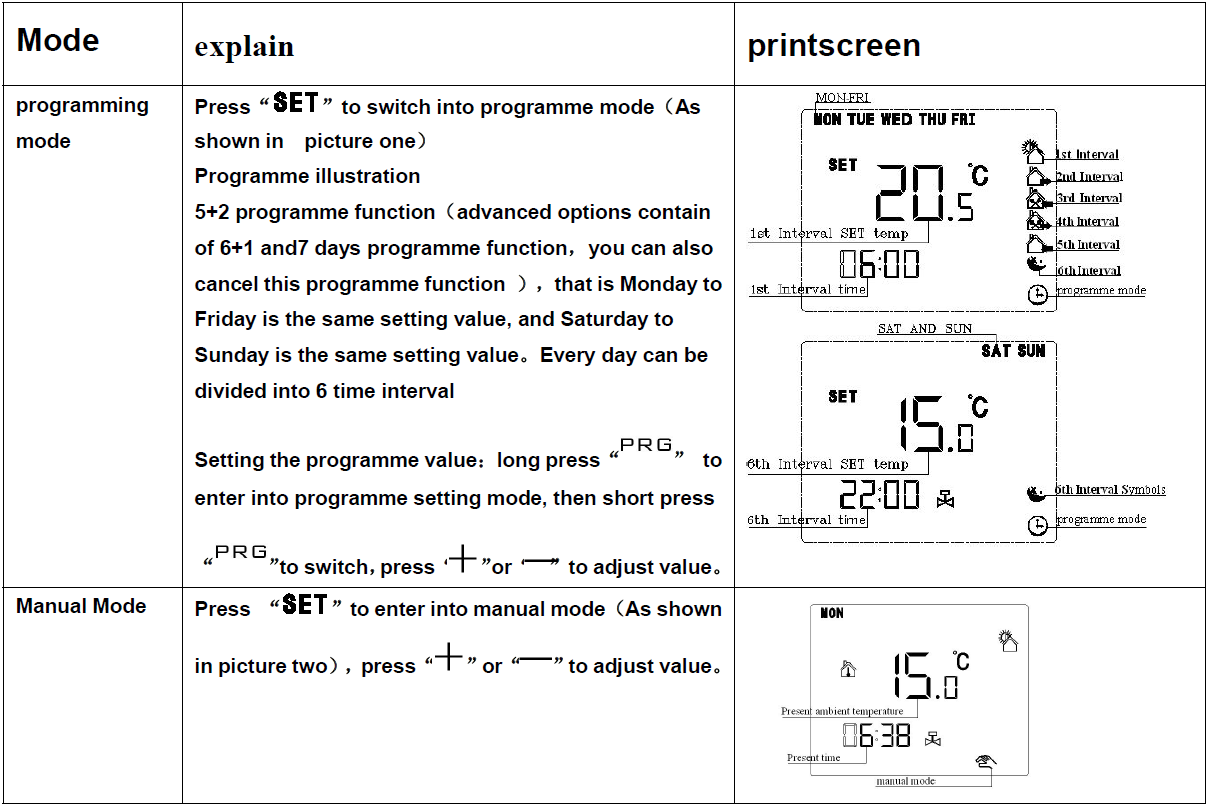

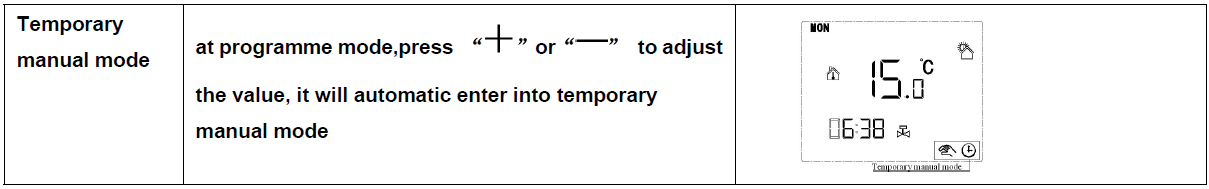

Run Mode

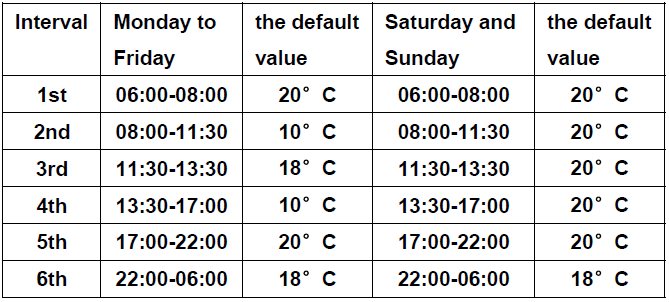

Factory Preset Mode
advanced options
advanced options can be classified to two sets
- MODE 1:

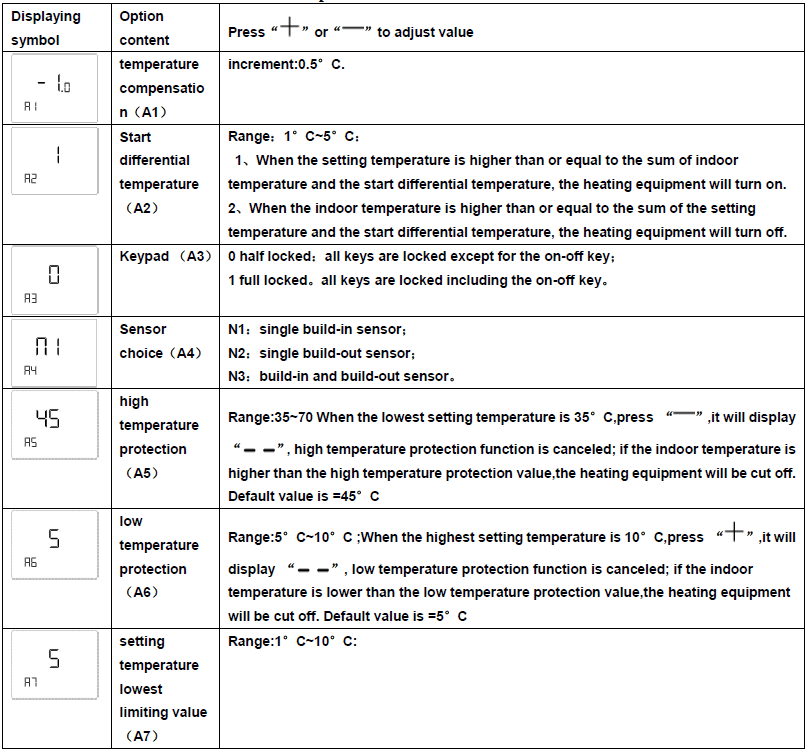

Hold down and at the same time for 3 seconds,it will display A1-A9, then press switch between these options - MODE 2:

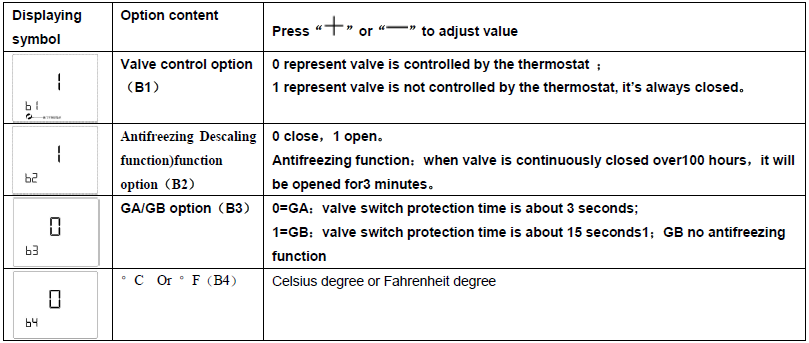

At power off state, hold down “ ”and “ ” and “ ”at the same time for 3 seconds it will display B1-B3,then press “ ” to switch between these options
Cautions on Installation and Use:
- To prevent the thermostat display from high fluctuation, special treatment has been made to the program. Therefore, it is normal that the thermostat cannot immediately display a sudden change in temperature.
- The thermostat was installed 1.5m above the ground.
- For the thermostat installed, please take care not to install it to the wall corner, door/window side or behind the door or in such unheated area as the exterior wall. Avoid hot/cold air ducts, radiators, flue, or thermal pipe
- If the wireless thermostat with battery seat is placed at a position where the air ventilation is poor, the temperature displayed on the thermostat might be inconsistent to the indoor average temperature.
- Only professional technicians are permitted to open the transmitting and receiving box of the thermostat installation. When installing the power supply, make sure that the power cable is well insulated.
- To install the receiving box, please install the base plate first and then connect the power and signal wire correctly before installing the upper cover and fixing it. The thermostat is an unrepairable product. The user shall not open the internal circuit board.
- Before installing the thermostat, make sure that the system is disconnected. The maximum voltage of the system shall meet the requirements specified in the Instruction Manual (Max. AC Voltage: 250V).

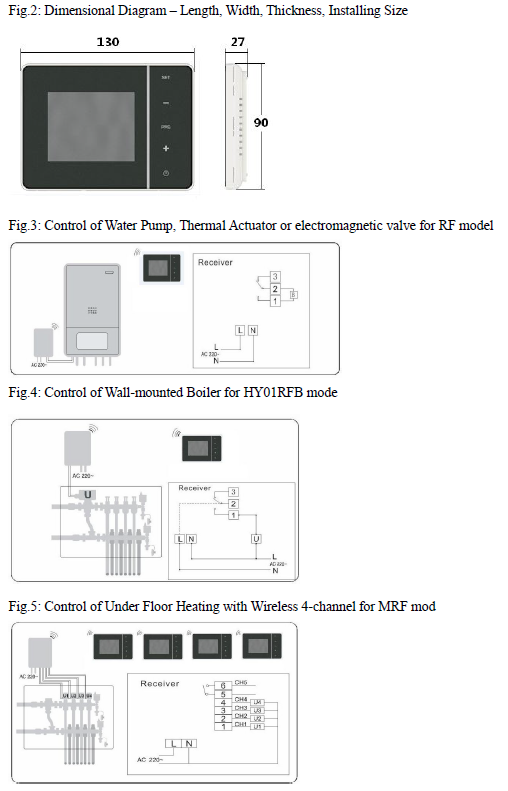

Wiring Illustration

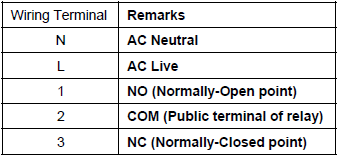

- Wiring Terminals
- Symbol Illustration
- Wall Mounted Gas Boiler
- Water Pump, Thermal Actuator or electromagnetic valve 3 control picture:
Reference:
