Byelearn B204-A030 Wifi Electric Heating Thermostat User Manual

Byelearn B204-A030 Wifi Electric Heating Thermostat

Specification

• Warranty: 2 years
• After-sale Service: Online technical support, Free spare parts
• Material: Anti-flammable PC +ABS
• Project Solution Capability: graphic design, 3D model design
• Model Number: B204-A030Brand Name: Byelearn
• Floor Heating Part Type: Floor Heating Thermostats
• Temperature sensing element: NTC
• Voltage range: 95~240V 50 ~ 60Hz

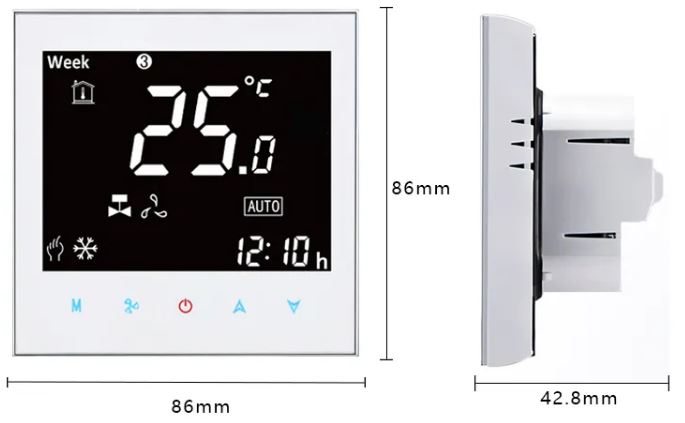

• Dimension: 86x86x13.3mm
• Operating environment: 0 – 45°C, 5 – 95% RH (non-condensing)

The Byelearn B204-A030 is a programmable electric heating thermostat that can be controlled through Wi-Fi. It is designed to be used with electric heating systems, such as baseboard heaters, convectors, or radiant ceiling heaters. With the B204-A030, users can program heating schedules for different times of the day or week, allowing them to save energy and money. The thermostat has a large, easy-to-read LCD screen and touch controls for easy operation. The Wi-Fi connectivity feature allows users to remotely control the thermostat using their smartphone or tablet, as long as they have an internet connection. This means that users can adjust the temperature of their home even when they are away, ensuring that they arrive to a comfortable environment.

The thermostat also includes a number of advanced features, such as adaptive learning, which learns the user’s preferred temperature settings over time and adjusts the heating schedule accordingly. It also has a vacation mode, which reduces energy consumption when the user is away for an extended period of time. the Byelearn B204-A030 is a modern and convenient thermostat that offers energy savings, remote control, and advanced features for electric heating systems.

What s in the box

• Thermostat
• User Manual
• Screws
• External Sensor

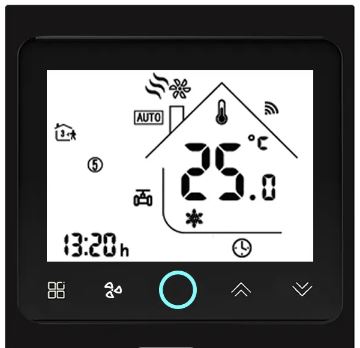

Product Description

Installation

• Turn off the power supply to your heating system before beginning installation.
• Remove the old thermostat from the wall and disconnect the wires from the terminals. Note which wire was connected to which terminal, as this will be important when connecting the new thermostat.
• Install the mounting plate for the new thermostat onto the wall using screws and anchors (if necessary).
• Connect the wires from your heating system to the corresponding terminals on the new thermostat.
• The Byelearn B204-A030 thermostat has labels for each wire connection: “L” for live wire, “N” for neutral wire, “L1” and “L2” for the two load wires.
• Mount the thermostat onto the mounting plate.
• Turn on the power supply to your heating system and test the thermostat to ensure that it is working properly.
• Download the Byelearn App and follow the instructions to connect your thermostat to your home Wi-Fi network.
• Once the thermostat is connected to Wi-Fi, you can control it remotely using the app on your smartphone or tablet.

Product Parameter
Wiring  Diagram

USAGE

Installation: Before installation, make sure to turn off the power supply to the heating system. Follow the instructions provided in the user manual to mount the thermostat on the wall and connect it to the heating system. The thermostat requires a 2.4GHz WiFi network for remote control.

Programming: The thermostat comes with a default program, but you can customize the temperature settings and schedules to meet your needs. Use the buttons on the thermostat or the companion app to set the desired temperature and schedule.

Remote control: You can control the thermostat from anywhere using the companion app on your smartphone or tablet. The app allows you to adjust the temperature, set schedules, and monitor the energy usage.

Voice control: The thermostat is compatible with Amazon Alexa and Google Assistant, which means you can control it with voice commands. Make sure to enable the skill or action on your smart speaker and link your thermostat to the account.

Energy saving: The thermostat has a built-in energy-saving feature that helps you reduce your heating costs. It uses adaptive technology to learn your routine and adjust the temperature accordingly. You can also set the thermostat to Eco mode to save energy when you’re away.

FAQS

What is the B204-A030 WiFi Electric Heating Thermostat?
The B204-A030 is a thermostat designed for electric heating systems that can be controlled remotely through WiFi.

What type of electric heating systems is the B204-A030 compatible with?
The B204-A030 is compatible with most electric heating systems, including electric baseboard heaters, convection heaters, and radiant ceiling heaters.

Can the B204-A030 be used with a central heating system?
No, the B204-A030 is designed specifically for electric heating systems and cannot be used with central heating systems.

How does the B204-A030 connect to WiFi?
The B204-A030 connects to WiFi through the Smart Life app, which can be downloaded on a smartphone or tablet.

What temperature range can the B204-A030 control?
The B204-A030 can control temperatures between 5°C and 35°C (41°F and 95°F).

Can the B204-A030 be controlled remotely?
Yes, the B204-A030 can be controlled remotely through the Smart Life app.

Can the B204-A030 be programmed with a schedule?
Yes, the B204-A030 can be programmed with a 7-day schedule that can be customized for each day of the week.

Does the B204-A030 have a manual override function?
Yes, the B204-A030 has a manual override function that allows you to adjust the temperature temporarily without affecting the programmed schedule.

Can the B204-A030 display the current temperature?
Yes, the B204-A030 has a digital display that shows the current temperature.

Is the B204-A030 easy to install?
Yes, the B204-A030 is designed for easy installation and can be installed in minutes with basic tools.

Does the B204-A030 have a battery backup in case of power outages?
No, the B204-A030 does not have a battery backup and will need to be reset in case of power outages.

What is the voltage rating for the B204-A030?
The B204-A030 has a voltage rating of 220-240V AC, 50/60Hz.

Does the B204-A030 have a lock function to prevent unauthorized access?
Yes, the B204-A030 has a lock function that can be activated to prevent unauthorized access.

Can the B204-A030 be used with voice control systems like Amazon Alexa or Google Assistant?
Yes, the B204-A030 can be used with Amazon Alexa or Google Assistant for voice control.

What is the warranty period for the B204-A030?
The B204-A030 comes with a 1-year warranty from the date of purchase.
