Breeze33 BZ33-201N Non-Programmable PTAC Thermostat
Wall Locations

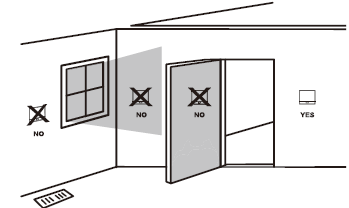

The thermostat should be installed approximately 4 to 5 feet above the floor. Select an area with average temperature and good air circulation.
- Do not install thermostat in locations:
- Close to hot or cold air ducts
- That are in direct sunlight
- With an outside wall behind the thermostat
- In areas that do not require conditioning
- Where there are dead spots or drafts (in corners or behind doors)
- Where there might be concealed chimneys or pipes
Subbase Installation
- Horizontal Mount
- Vertical Mount
Mount Thermostat

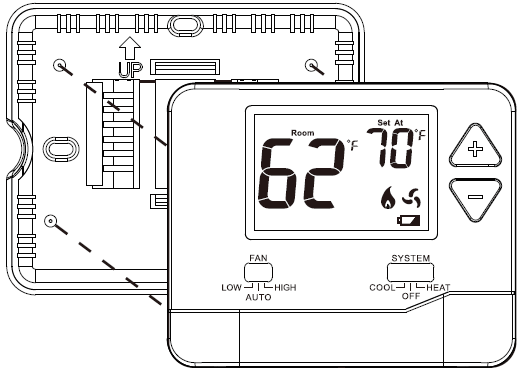

Align the 4 tabs on the subbase with corresponding slots on the back of the thermostat, then push gently until the thermostat snaps in place

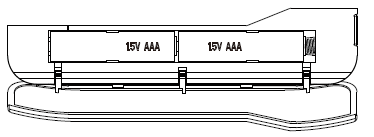

Battery Installation
Battery installation Is optional If the thermostat ls hardwired (Rand C terminal connected to 24V power.
Important: High-quality alkaline batteries are recommended. Rechargeable batteries or low-quality batteries do not guarantee a 1-year life span.
lnsert2 AAA Alkaline batteries (included. High-quality alkaline tiatter1es are recommended

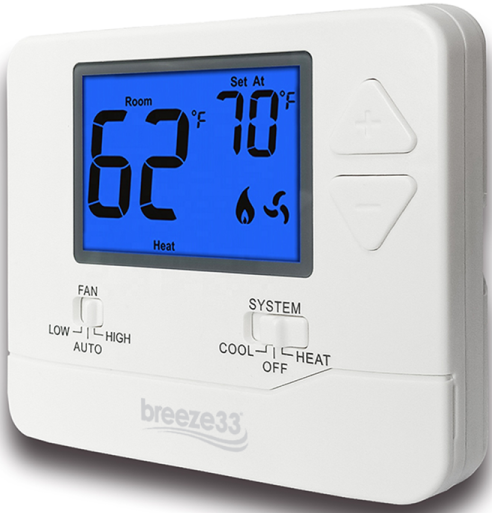

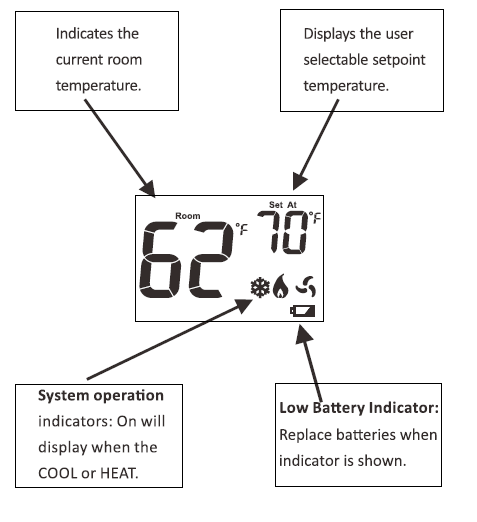

Getting to know your thermostat
LCD
- Fan Switch
- System Switch
- Setpoint Buttons
Wiring
- If you are replacing a thermostat, make note of the terminal connections on the thermostat that is being replaced some case the wiring connections will not be color coded.
- For example, the red wire may not be connected to the R terminal.
- Loosen the terminal block screw_s. Insert wires then retighten terminal block screws.
CTerminal
The C (common wire) terminal does not have to be connected when the thermostat is powered by batteries .
Wire Specifications
Use shielded or non-shielded 18-22 gauge thermostat wire.

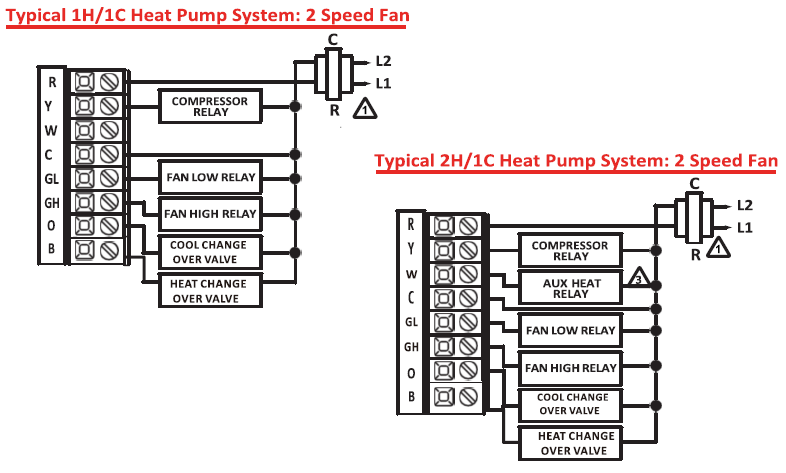

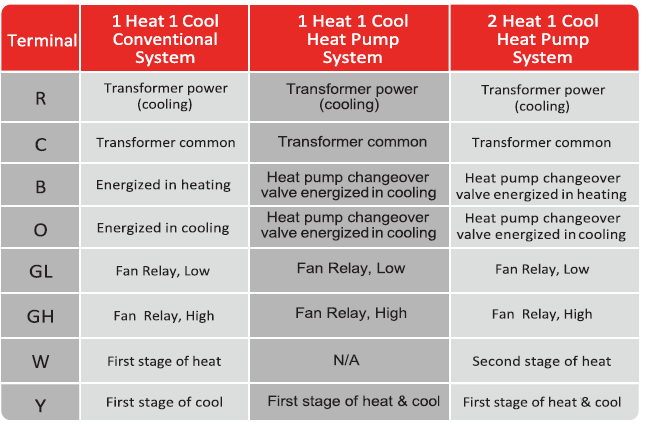

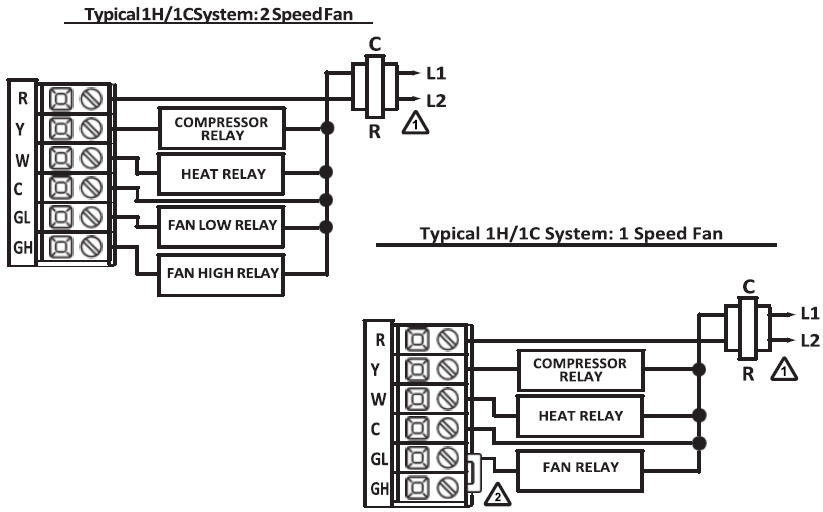

Wiring Diagrams

Technician Setup
Fan Operationsetup

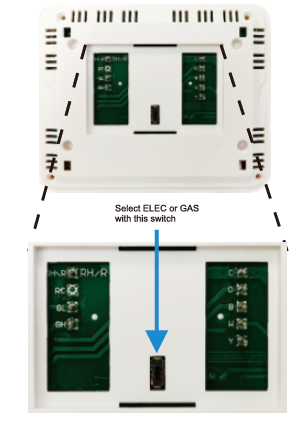

Electric: The thermostat operation Jumper pin should be put In the ELEC position. This setting allows the thermostat to operate the fan during a call for heat. Most PTAC systems will require ELEC Fan Operation Setup.
Gas: For systems that control the fan during a tall for heat, put the jumper pin into the GAS position.

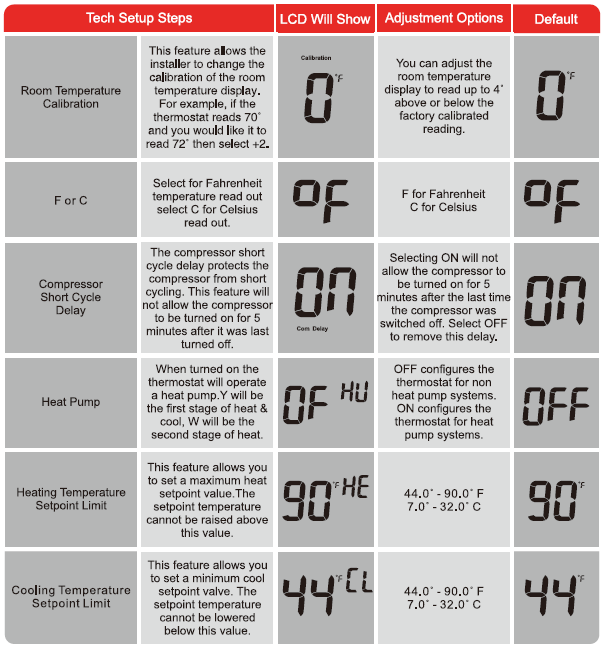

Menu
- Set the thermostat system switch ID OFF.
- To enter the tech setup Menu, press and hold ‘+” and ‘-“together for 3 seconds.
- Use ‘+’and’-‘to to select the desired setting for each option.
- Tap ‘+’and “-‘ together to move the next option.
- To exit Tech Setup Menu. move the system switch or wait for 15 seconds
Swing Setting
The second stage of Heat will turn on at 2x the swing set. The second stage will turn off when the swing is reached. For example, if the swing set is o.s for heating and the thermostat is set at 70″ F, the first stage will turn on at approximately 69.2″ F. The second stage will turn on at 68.4″F and the first will turn off at 70.8″ F.
- Set the thermostat system switch to the desired position (COOL or HEAT).
- Press and hold “+”and “-“together for 3 seconds.
- Use “+”and “-· to adjust desired swing setting (The display reads in tenths of a degree.)
- To exit, move system switch or wait for 1 second
Specifications
- The display range of temperature … 32’F to 99’F (l’C to 40’C)
- The control range of temperature …. 44’F to 90’F (7’C to 32’C)
- Load rating ……………………………………. 1 amp per terminal, 1.5 amp maximum all terminals combined
- Swing (cycle rate or differential) …… Heating is adjustable from 0.2′ to 2.0′
- Cooling is adjustable from 0.2′ to 2.0′
- Power source ……………………………….. 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire
- Battery power from 2 AAA Alkaline batteries
- Operating ambient …………………….. 32’F to +105’F {0’C to +4l’C)
- Operating humidity …………………….. 90% non-condensing maximum
- Dimensionsofthermostat …………….. 120 x 98 x 28MM
WARRANTY
Breeze33 Products LLC (Breeze33) warrants to the ORIGINAL PURCHASER that its thermostats shall be free from defects in material and workmanship under normal use and service for a five (5) years. This warranty cannot be transferred – it is extended only to the original Purchaser or First User of the Product. By accepting and keeping this Product you agree to all of the warranty terms and limitations of liability described below. Breeze33ʼs obligations under the warranty set forth above shall be to replace any Breeze33 Thermostat which is defective
WHAT IS NOT COVERED?
The warranty above does not cover and Breeze33 is not liable for, (i) installation, (ii) any labor charges or (iii) products which have been damaged as a result of any accident, misuse, abuse, neglect, improper installation or maintenance, the use of abrasive or organic solvent cleaners, modification, failure to use the register, grille, or diffuser in accordance with instructions provided by Breeze33
HOW TO OBTAIN WARRANTY SERVICE Contact our warranty department at 740-314-4404 to report the defect. Return failed product with proof of purchase,your name, and address within 30 days of failure to
- Breeze33 Products LLC 350
- Courtney Road Sebring,
- Ohio 44672 USA
LIMITATION OF LIABILITY WARRANTY
Breeze33ʼs liability on any claim of any kind, including, without limitation, warranty, negligence and/or breach of contract, shall in no case exceed the purchase price paid by the Customer. IN NO EVENT SHALL BREEZE33 BE LIABLE FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO PROPERTY) OR PUNITIVE DAMAGES, DAMAGES IN THE NATURE OF PENALTIES, OR SIMILAR OR RELATED DAMAGES OF ANY KIND.
DISCLAIMER OF WARRANTIES
BREEZE33 EXPRESSLY DISCLAIMS ALL WARRANTIES, EXCEPT AS EXPLICITLY STATED HEREIN, TO THE FULLEST EXTENT PERMITTED BY LAW, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT. THIS DISCLAIMER INCLUDES ANY ORAL WARRANTIES OR REPRESENTATIONS MADE OR IMPLIED BY ANY AGENT, EMPLOYEE, SUBCONTRACTOR, MANAGER, DIRECTOR AND/OR REPRESENTATIVE OF BREEZE33.
