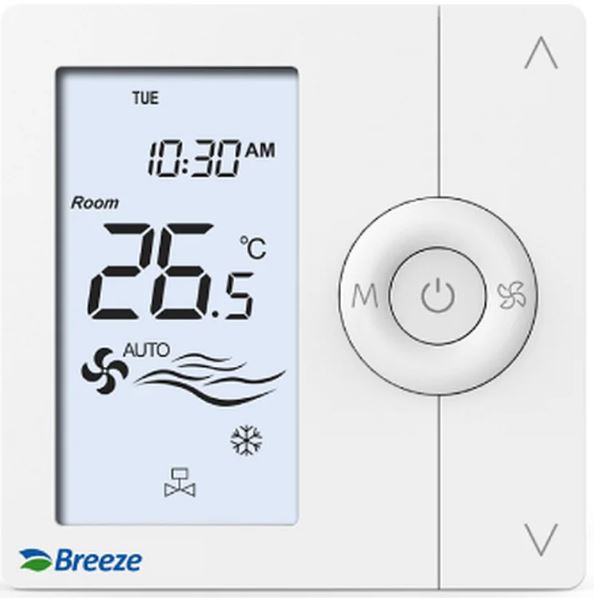

BREEZE BC103-4DM Fan Coil Thermostat
INTRODUCTION
An expert thermostat created specifically for managing fan coil units in HVAC systems is the Breeze BC103-4DM Fan Coil Thermostat. In order to maximize comfort and energy economy, it offers accurate temperature control and a number of settings. An overview of the Breeze BC103-4DM fan coil thermostat is provided below:
The Breeze BC1034DM Fan Coil Thermostat is made especially for fan coil units, which are often used in lodging establishments, workplaces, homes, and other locations where individual room temperature control is necessary. To guarantee maximum comfort and energy savings, it combines cutting-edge features and functionality.
Key characteristics
The BC103-4DM thermostat works with the majority of fan coil systems, including two-pipe and four-pipe setups. It has a crystal-clear LCD display that indicates the temperature, mode selections, fan speed, and other pertinent data.
- Fan Control: Using the thermostat, you may change the fan speed to meet your comfort needs.
- Temperature Control: It supports both heating and cooling modes and enables accurate temperature control with setpoint modification.
- Custom temperature schedules may be created to automatically change the temperature depending on your daily routine.
- Occupancy Detection: When a room is empty, the thermostat may detect occupancy and change the temperature to conserve energy.
- Auto Changeover: Depending on the ambient temperature, the auto changeover function allows the thermostat to automatically switch between the heating and cooling modes.
- Keypad Lock: To stop unauthorized access and setting manipulation, it has a keypad lock function. The thermostat includes a backlit display that makes it simple to see even in dim lighting.
- External Sensor: For improved accuracy, certain BC103-4DM thermostat models may incorporate an external temperature sensor.
Installation and configuration:
A qualified HVAC technician should install the BC103-4DM thermostat. It needs a power supply and wire connections to the fan coil unit. There may be configuration options available for the thermostat that may be chosen during installation to suit the particular needs of the HVAC system and user preferences. All things considered, the Breeze BC103-4DM Fan Coil Thermostat provides sophisticated control and versatility for fan coil systems, enabling users to maintain comfortable temperatures while maximizing energy efficiency.
SPECIFICATION
| Feature | NEW INTELLIGENT THERMOSTAT | |
| Model No | BC103-4DM | BC103-4ADM |
| Supply Voltage | 85~230Vac /24Vac. 50/60Hz | |
| Control Device | 2&4-pipe FCU&DX Unit | 2pipe&4-pipe FCU |
| Switch Rating | 5A (7A as optional) | |
| Max.Fan Load | 1A/3A inductive, 3A resistive | |
| Fan Control | Single or 3-speed and Auto | |
| Valve Control | On/Off | 2×0~10V |
| Heat/Cool | Cool&Heat&Auto | Cool&Heat&Auto |
| Remote Sensor | Yes | |
| Communication | Optional | |
| Hotel Card | Yes | |
| Backlight | White | |
| Temperature Display | Celsius/Fahrenheit | |
| Programmable | Optional | |
| Setpoint Range | 5~35C | |
| Temperature Display | 0.5C | |
| Ambiente |
Storage:-20C~60C
Operating: 0~50°C
Humidity:5~95%
|
|
| Product Color | White RAL9010 | |
| Cycling Fan | Yes | |
| Approval |
EN60730-1
CE Standard
|
|
| Installation | Flush/Surface Mounting | |
| Housing Material | PC+ABS | |
| IP Grade | IP 30 | |

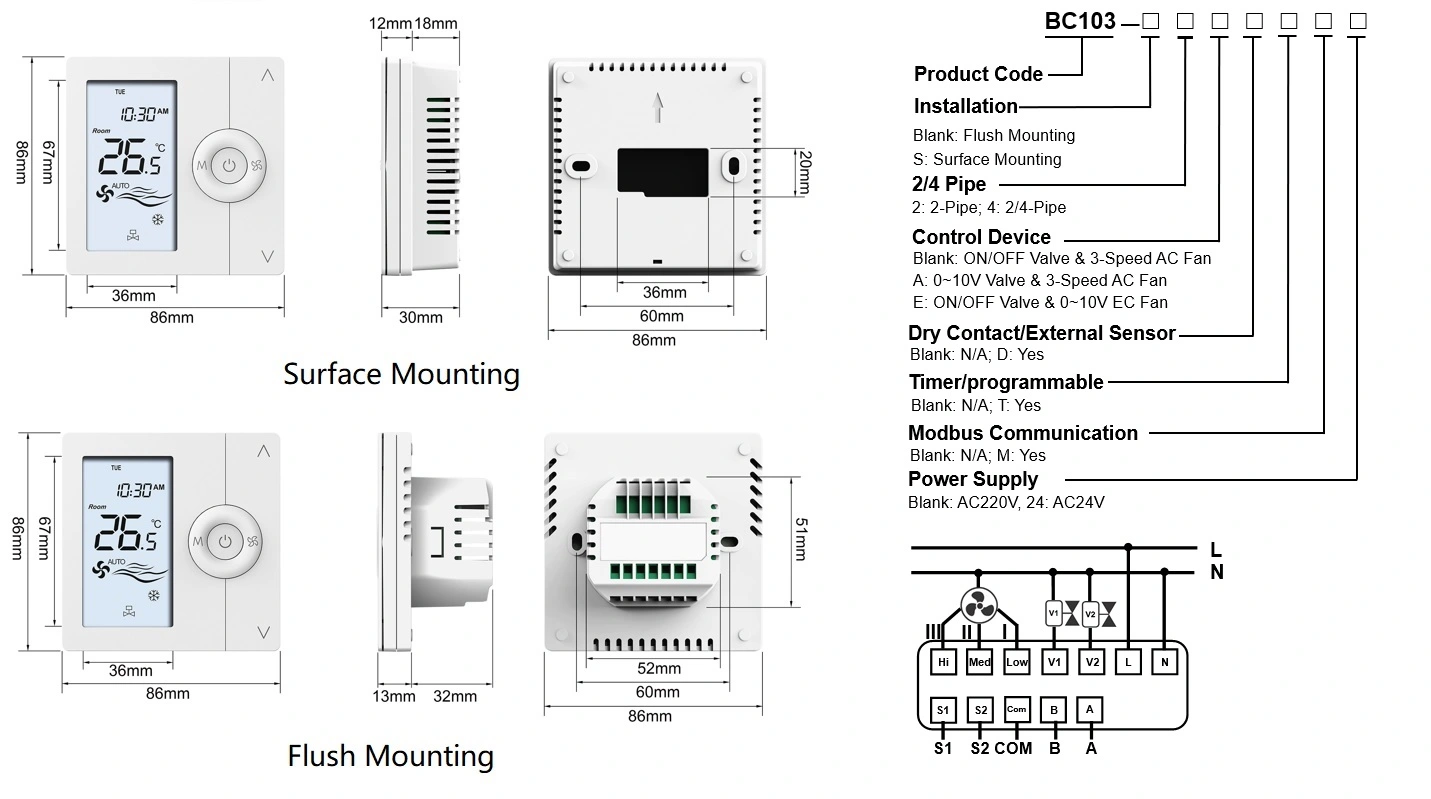

DIMENSION
HOW TO OPERATE
- Learn how to use the thermostat: Give the buttons, displays, and symbols on the thermostat a minute of your attention. You can use the UI more skillfully if you do this.
- Check to see that the thermostat is getting electricity before turning it on. It could be battery-operated or attached to the power source. For information on the precise power needs, see the user handbook.
- Change the mode: The thermostat need to have many settings, including heating, cooling, and fan-only. Choose the appropriate option for your needs.
- Set the appropriate temperature using the temperature control buttons or, if provided, a touchscreen interface.
- While some thermostats employ a single control dial or touchscreen slider, others use distinct buttons for raising and lowering the temperature.
- Fan control: A fan coil unit’s thermostat is intended to regulate the fan speed. It may have options for low, medium, high, or auto fan speed.
- Depending on your preferences or the needs of the environment, choose the right fan speed. You may configure temperature schedules for various times of the day on certain fan coil thermostats if that feature is offered.
- If this functionality is offered, go to the user guide for instructions on how to set up and modify the schedules. Use the relevant settings on the thermostat to make changes as required to the temperature or fan speed.
- Other parameters, including swing mode, sleep mode, or timers, could also be adjustable. For comprehensive instructions on how to utilize these capabilities, see the user handbook.
- To maintain optimal operation, regularly dust and clean the thermostat.
- I advise contacting the manufacturer or consulting the user manual for thorough instructions related to that particular model if you run into any problems or have concerns regarding the Breeze BC103-4DM Fan Coil Thermostat.
FAQS
The Breeze BC103-4DM Fan Coil Thermostat is what, exactly?
A thermostat made exclusively for managing fan coil units is the Breeze BC103-4DM Fan Coil Thermostat.
What kinds of systems are compatible with the Breeze BC103-4DM thermostat?
Other HVAC systems that employ on/off control and fan coil units are both compatible with the Breeze BC103-4DM Fan Coil Thermostat.
Multiple fan speeds—does the Breeze BC103-4DM thermostat support them?
The Breeze BC103-4DM Fan Coil Thermostat does, in fact, enable a variety of fan speeds, letting you customize the airflow to your preferences.
Is it possible to set various temperature schedules for various days of the week?
Yes, you may set several temperature schedules for each day of the week on the Breeze BC103-4DM Fan Coil Thermostat to provide flexibility and energy savings.
Is the LCD on the thermostat illuminated for easier viewing?
The Breeze BC103-4DM Fan Coil Thermostat does, in fact, include a backlit display that makes it simple to see and use even in dim lighting.
Is a 24V power source compatible with the thermostat?
The Breeze BC103-4DM Fan Coil Thermostat may be powered by a 24V power source, which is often used in HVAC systems, thus the answer is yes.
Is there an occupancy sensor incorporated into the thermostat?
The Breeze BC103-4DM Fan Coil Thermostat does not have an occupancy sensor, hence the answer is no. Based on the preprogrammed temperature parameters, it functions.
Is it possible to lock the thermostat to stop illegal adjustments?
Yes, you may lock the settings on the Breeze BC103-4DM Fan Coil Thermostat in order to prevent illegal entry and modifications.
Is a remote control compatible with the thermostat?
No, remote control is not included with the Breeze BC103-4DM Fan Coil Thermostat. It is intended to be controlled locally at the thermostat.
Is there a temperature sensor integrated into the thermostat?
There is a temperature sensor incorporated into the Breeze BC103-4DM Fan Coil Thermostat that detects the ambient temperature in the space.
Can I manually alter the scheduled schedule?
If you need to change the temperature outside of the preset range, you may manually override the programmed schedule on the Breeze BC103-4DM Fan Coil Thermostat.
Is there a filter-change reminder on the thermostat?
The Breeze BC103-4DM Fan Coil Thermostat does not have a function that reminds you to replace your filters. The management of temperature is its main concern.
Is there a vacation mode on the thermostat?
There is no special vacation mode on the Breeze BC103-4DM Fan Coil Thermostat. But while you’re gone, you may manually set the temperature to a certain setpoint.
Is it possible to adjust the fan separately from the heating or cooling process?
Yes, you may operate the fan without turning on the cooling or heating function thanks to the Breeze BC103-4DM Fan-Coil Thermostat’s independent fan control.
How long is the Breeze BC103-4DM Fan Coil Thermostat’s guarantee good for?
Depending on the manufacturer, the Breeze BC103-4DM Fan Coil Thermostat’s warranty duration may be different. For information on the warranty, it is essential to consult the product’s manual or get in touch with the maker.
