BEOK TST32A Electrical Heating Thermostat Operating Instruction

logo - Copy - Copy

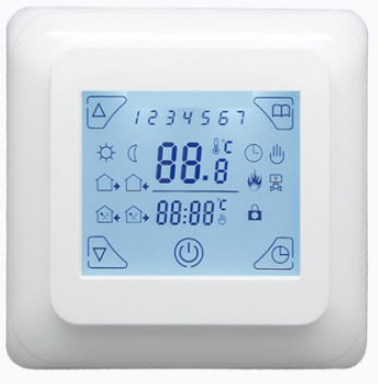

BEOK TST32A Electrical Heating Thermostat

BEOK- TST32A- Electrical -Heating -Thermostat-pro

Product Summary

TST32A Touch Screen Period Programming Thermostat has Weekly circulation, it is possible to set 6 periods called events each day with corresponding pre-set temperatures, also you can select programmable mode or manual mode according to your individual requirements. The thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating systems.

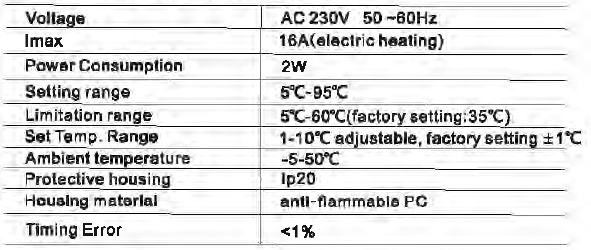

Technical ParameterBEOK- TST32A- Electrical -Heating -Thermostat-pro - 1

Display symbols

  • BEOK- TST32A- Electrical -Heating -Thermostat-pro - 2Manual mode
  • BEOK- TST32A- Electrical -Heating -Thermostat-pro - 3Programmable mode
  • BEOK- TST32A- Electrical -Heating -Thermostat-pro - 4Wake-up.event 1
  • BEOK- TST32A- Electrical -Heating -Thermostat-pro - 5Leave (am),event 2
  • BEOK- TST32A- Electrical -Heating -Thermostat-pro - 7Return(am),event 3
  • BEOK- TST32A- Electrical -Heating -Thermostat-pro - 9Leave(pm),event 4
  • BEOK- TST32A- Electrical -Heating -Thermostat-pro - 5Return(pm),event 5
  • BEOK- TST32A- Electrical -Heating -Thermostat-pro - 9Sleep ,event 6
  • BEOK- TST32A- Electrical -Heating -Thermostat-pro - 10Heating on

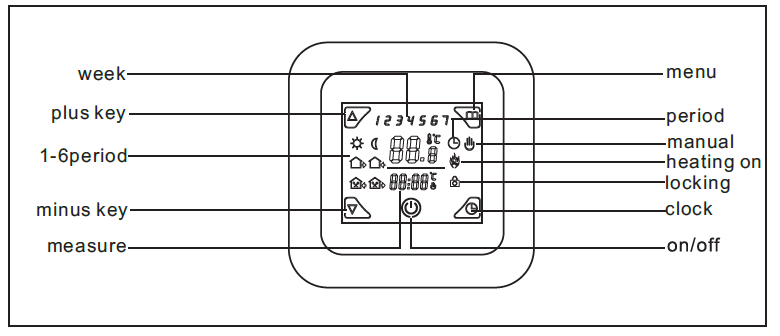

User Interface ExplanationBEOK- TST32A- Electrical -Heating -Thermostat-pro - 11

Model Definition

  • EP: For Electric Floor Heating System, 16A
  • For example: TST32A-EP

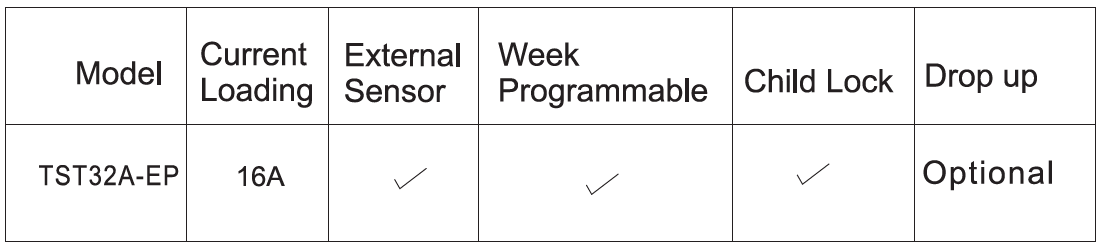

Model SpecBEOK- TST32A- Electrical -Heating -Thermostat-pro - 12

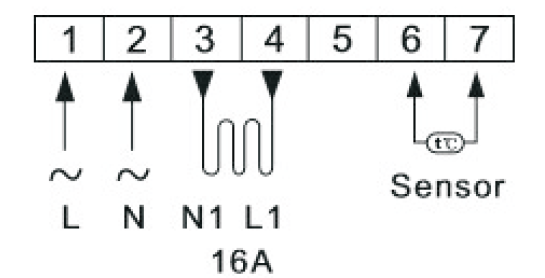

Wiring DiagramBEOK- TST32A- Electrical -Heating -Thermostat-pro - 13

Operation Instruction

  • Power key “ BEOK- TST32A- Electrical -Heating -Thermostat-pro - 14
  • The increase key“ BEOK- TST32A- Electrical -Heating -Thermostat-pro - 15”and the decrease key “BEOK- TST32A- Electrical -Heating -Thermostat-pro - 16
  • Time setting key “BEOK- TST32A- Electrical -Heating -Thermostat-pro - 17
  • Mode selection key“BEOK- TST32A- Electrical -Heating -Thermostat-pro - 18
  • Locking “ BEOK- TST32A- Electrical -Heating -Thermostat-pro - 19”and unlocking
  • Temperature and time display

Programming:6-event time and temperature



Key



Event



Symbol



Time



Default value











Day1~5

1 06: 00

Set the start/end

20℃

Set progammed

2 08: 00 15℃
3 11: 30 15℃
4 12: 30 15℃
5 17: 00 22℃
6 22: 00 15℃




Day6~7

1 08: 00 22℃
2 23: 00 15℃

Advanced Sattlng(quallflad parson preferred

Symbol Function Setting and options
ADJ Temperature calibration Adjust measured temperature


2



SEN



Sensor mode

IN: built-in sensor OUT: floor sensor ALL: both sensors

(floor sensor is the limit sensor)



3



LIT

Limitation temperature Adjust limitation value, Limitation range:5-60°C
4 DIF Switching differential

Adjust switching differential



5



LTP

Anti-frozen function Turn on/off Anti-frozen function

(Anti-frozen symbol only displays when room temp. is lower than 5°C)



6



PRG

Set vacation mode 2: 5/2 day mode 1: 6/1 day mode 0: 7 day mode




7





RLE



Potential-free output

00: in same way

01: in different way

02: in different way to main/aid relay

03: in different way to main/aid relay power off and anti-frozen, without output.

(optional)

8 DLY Potential-free output delay Change the delay time (0-5min) (optional)
9 HIT Max. temp. Max. limitation temperature range (35-95°C)


10

AFAC Reset to factory settings Programming parameters will be reset to factory settings when symbol – – _ appears

TST32A-WARNING-lmportant Safety Instructions
Disconnect the power supply before carrying out any installation or maintenance work on this thermostat and associated components. The thermostat and associated components should only be installed by a competent person{i.e.a qualified electrician).Electrical installation must be in accordance with appropriate statutory regulations

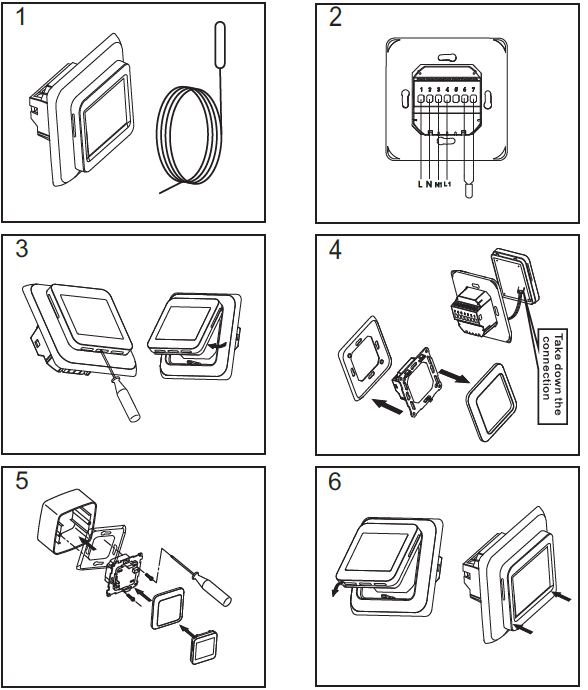

Installation InstructionBEOK- TST32A- Electrical -Heating -Thermostat-pro - 21

X.ATT
 Please read this manual for complete Instructions on Installing and operating your thermostat. If you require further assistance, please feel free to contact us.

In The Box You will find

Model TST32A-EP
Thermostat
User Manual
Screws
Dryer
External sensor

Our Service
We offer the warranty of 24 months from the sales day. During the warranty, if it is belong to the quality issue, we will fix or replace them for you by free after test them. If it is not quality problem or beyond the warranty time, we will charge for the after-sales serviceBEOK- TST32A -Electrical- Heating- Thermostat- fig 14

Warning:
The symbol BEOK- TST32A- Electrical -Heating -Thermostat-pro - 22means the unit is being installed, it may cause electrical shock hazard during maintaining, so please make sure it is operated by the professional technical worker.
