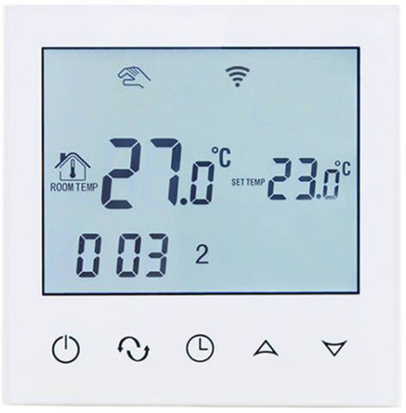

BEOK TOL-48 Heating Thermostat
Product packaging
- Thermostat host—————–1 PC
- Qualification certificate——- 1 PC
- Sensing line (optional)——– 1 PC
- Manual—————– 1 PC
- Screw——————- 2 PCS
Product Model
- WP Plumbing 3A
- EP Electric Heating 16A
- WPB linkage, gas boiler 3A
User Notes
- Please read this manual carefully. Improper operation may damage the product or cause dangerous conditions.
- The installation personnel must be well-trained and experienced service technicians.
- After installation, please read this manual carefully and operate the product according to the instructions.
Caution: Risk of electric shock or equipment damage
Wiring Diagram
Note: WP for water heating; EP for electric heating; WPB for gas boiler
Installation procedure
This product is installed with a standard 86 control switch (in compliance with European regulations)
- Remove the mounting plate in this direction
- Fix the mounting plate to cassette with a screw
- After installation, buckle the product in this direction
Description of display &Icon
Operating Instruction
- Power on/off: press
to turn on/off the thermostat. - Press the
key to switch between manual and automatic modes. - In the automatic mode, press
or
to adjust the temperature to enter the automatic temporary mode. This mode runs for only one session. - Press
key to enter the clock setting, press key to switch Settings Item, press or keys to adjust the value of each parameter. - Press or or 5 seconds to add or cancel the child lock.
Time programming instructions
Press and hold the key to enter the programming setting, short press the key to switch the option, press the key or key to adjust each option parameter, and press the key to exit and save.
| KEY | OPTION | ICON | TIME | ADJUST | DEFAULT | ADJUST | |
|
|
workday | 1 |  |
06:00 | or |
20℃ | or |
| 2 |  |
08:00 | 15℃ | ||||
| 3 |  |
11:30 | 15℃ | ||||
| 4 |  |
12:30 | 15℃ | ||||
| 5 |  |
17:00 | 22℃ | ||||
| 6 |  |
22:00 | 15℃ | ||||
| Holiday | 1 |  |
08:00 | 22℃ | |||
| 2 |  |
23:00 | 15℃ | ||||
Advanced options
When POWER OFF, press the key and the key for 5 seconds to enter the advanced option setting.
Press to enter the next option, press or to adjust, and press to exit the height Level option.
| 1 | Temperature compensation | The default value of the calibration room temperature is -2 ℃. Press the up and down keys to adjust. The adjustable range is 9.9 °C to -9.9 ℃. |
| 2 | Sensor selection | The temperature sensor is selected as IN by default. Press the up and down keys to adjust as IN respectively, indicating that the internal. |
| 3 | Modify the temperature limit | The default temperature limit value is 35 ℃. Press the up and down keys to adjust the range from 5 ℃ to 60 ℃. |
| 4 | Temperature difference start | The default temperature difference is set to 1 ℃. Press the up and down keys to adjust the range to 1-10 degrees. |
| 5 | Antifreeze funding | Set the default anti-freeze function to OFF, display OFF, press the up key to tum on anti-freeze, and display ON |
| 6 | Holiday option and turn off weekly programming | Set the default rest day as double OFF. Press the up and down keys to adjust it to double OFF (1-5), single OFF (1-6), no OFF (1 -7), and tum off week programming (OFF). |
| 7 | Primary and secondary reverse selection | Set the default main and auxiliary reversal to 0. Press the up and down keys to adjust 0 to tum off the main and auxiliary reversal. 01 means auxiliary reverse, 02 means auxiliary reverse, 03 means main and auxiliary reverse, shutdown and antifreeze is not on, stop output |
| 8 | Passive linkage output delay time | Set the default passive linkage delay time to 0. Press the up and down keys to adjust the range of 0-5 minutes. |
| 9 | Set upper-temperature limit | The default value of the set temperature upper limit is 60 ℃, and the adjustment range is 35-95 ℃ by pressing the up and down keys. |
| 10 | Restore Factory Defaults | Set to restore the factory default setting to display “-”, Press the up button to adjust the display “—”, press the enter button to restore the factory settings |
