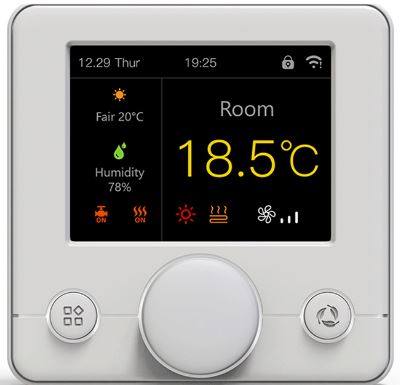

Beok TCR8 WIFI Heating Thermostat
Product Overview
This series of thermostat has Floor Heating, Fan Coil, and Integrated version, meeting the requirements under different scenarios.
| Version | System mode | Model | Application |
|
Floor heating |
Heating |
EP | Built-in & floor sensor, floor limit sensor + Weekly programming |
| WP | A NC/NO dual-output + Weekly programming | ||
| WPB | A NC/NO dual-output + Weekly programming+ Potential-free output | ||
|
Fan Coil |
Heating /Cooling / Ventilation | Ac2 | Timer task + 2-pipe system |
| Ac2-
485 |
Timer task + 2-pipe system + 485Modbus (optional) | ||
| Ac4-
485 |
Timer task + 4-pipe system + 485Modbus (optional) | ||
|
Integrated |
Heating / Cooling / Ventilation/Floor heating / Floor heating + Heating |
AWY |
Floor heating & fan coil, weekly programming + Potential-free output + Timer task + 485Modbus (optional) + Door card (optional) |
Display Symbols
Temperature Control Mode(Floor Heating/Integrated)
Auto Mode
- Weekly-circled programme, up to 6 heating events can be set per day.
- Heating events, workdays and temperature can be separately customized based on personal routines.
Manual Mode
- Thermostat works based on manually-set temperature, disconnecting from auto mode.
Temporary Mode
- Thermostat works based on manually-set temperature temporarily and then shifts back to auto mode till next event.
User Operation
- Power on/off : Long press “
” to turn on/off the thermostat. - Temp setting: Rotate handwheel“
”to change setting temperature by 0.5°C. - System mode: Press “
” shortly to switch cooling/heating/ventilation. (Fan Coil) - Press “ ” shortly to switch cooling/heating/ventilation/floor heating/floor heating + heating. (Integrated)
- Press “ ” shortly to switch manual/auto mode. (Floor heating)
- Press “
” shortly to switch manual/auto mode. (Integrated, floor heating) - Child-lock: Press “ ” + “
” for 3 seconds to activate child-lock - Enter menu: Press “ ” enter the menu interface.

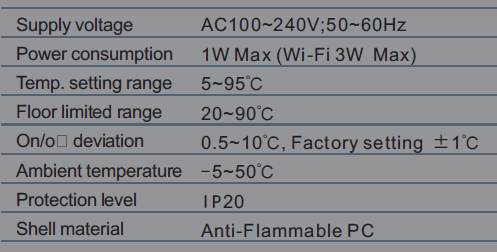

Parameter
Auto-mode Setting
|
Events |
Time | Temperature | |||
| Default value | Modify | Default value | Modify | ||
|
Workdays |
Sunrise | 06 : 00 |
Rotate handwheel |
20℃ | Rotate handwheel |
| Morning | 08 : 00 | 15 ℃ | |||
| Nooning | 11 : 30 | 15 ℃ | |||
| Afternoon | 12 : 30 | 15 ℃ | |||
| Evening | 17 : 00 | 22 ℃ | |||
| Night | 22 : 00 | 15 ℃ | |||
| Weekends | Sunrise | 06 : 00 | 20℃ | ||
| Night | 22 : 00 | 15 ℃ | |||
| Meaning | Rotate handwheel | Default value |
|
Sensor Mode |
Built-in Sensor Floor Sensor
Built-in Control&Floor Limitation |
IN |
| Buit-in Sensor Calibration | -5~5℃ | -3℃ |
| Buit-in Max Setting Value | 5~95℃ | 50℃ |
| Floor Max Setting Value | 10~95℃ | 50℃ |
| Limitation Value | 20~95℃ | 35℃ |
| Output Jitter Control | 0~5℃ | 1℃ |
| Anti-Freeze Protection | ON/OFF | OFF |
|
Linkage Mode |
Noninverting Inverting Inverting
Inverting and Anti-Freeze closed |
Noninverting |
| Linkage Time Delay | 0~5Min | 0Min |
|
Weekday Mode |
Monday to Friday/Monday to Saturday
/Monday to Sunday/ |
2-day |
| Boot Type | Function Off/Function On/Function Saved | O F F |
| Temperature Unit | ℉/℃ | ℃ |
|
Child Lock Type |
None Lock All
All but power |
None |
| Control Mode | All/Air/Floor | Floor |
| Cloud Region | CN/US/EU | CN |
| Reset All Settings | / | / |
Advanced Setting (Usually for Professional Technicians)
Sensor failure
Please select work mode of sensors correctly. When it shows E0/E1 error, thermostat will stay power-off till the error is eliminated.E0: built-in sensor is short-circuited or disconnected. E1: floor sensor is short-circuited or disconnected.
Timer Task Setting (Fan Coil/Integrated)
Press“ ”to enter the menu page. Turn the knob“ ”, choose “Auto Mode”, and then choose “Schedule”. Set the parameters by turning the knob, then press “Home” to save and exit to home page.

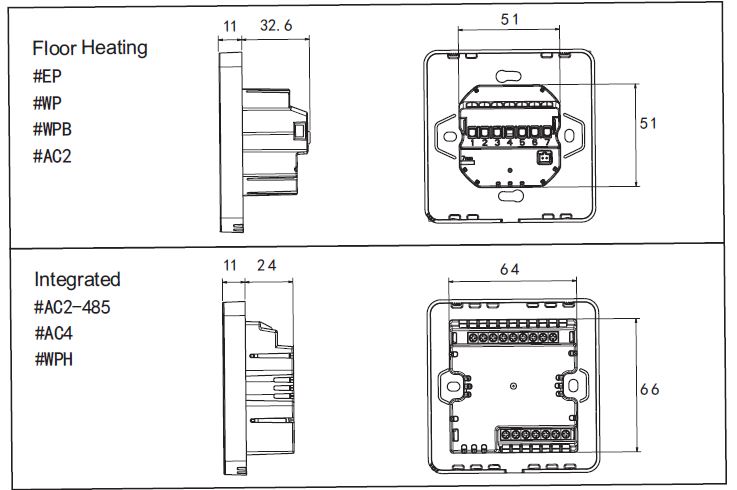

Dimensions (Unit: mm)
Mounting Steps

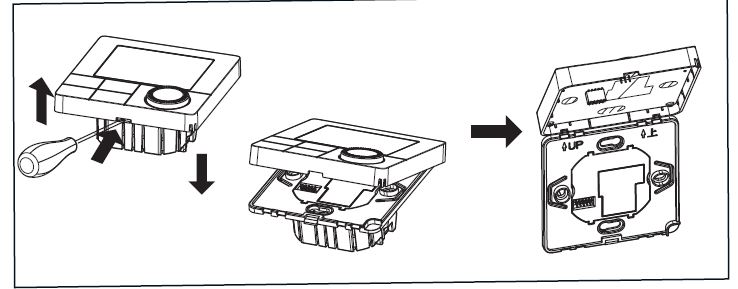

- Release front cover by inserting a head screw-driver into bottom crack.
- Insert the wires and then fix these wires with screws. Suggested wire-stripping length is 7-9mm.

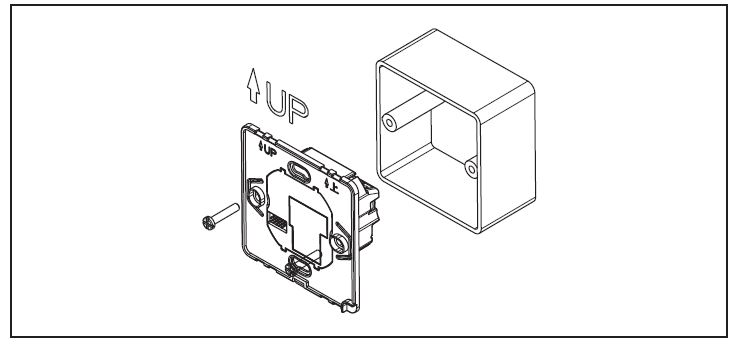

- Mount backing plate into wall-cassette, put screws and then fix thermostat.
- Make sure that the thermostat is fixed without deformation. Suggested torque is 0.2~0.4N.m (2.0~4. 1kgf.cm).

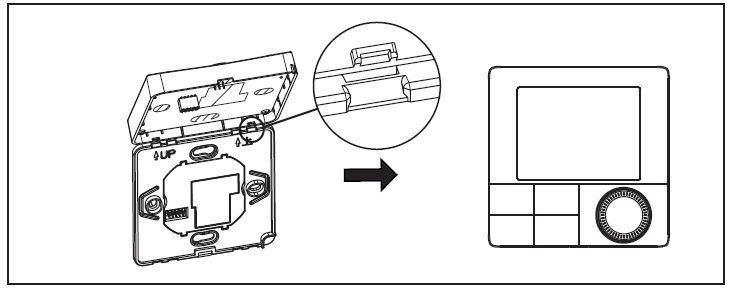

- Re-mount the front cover via snap-fit connection

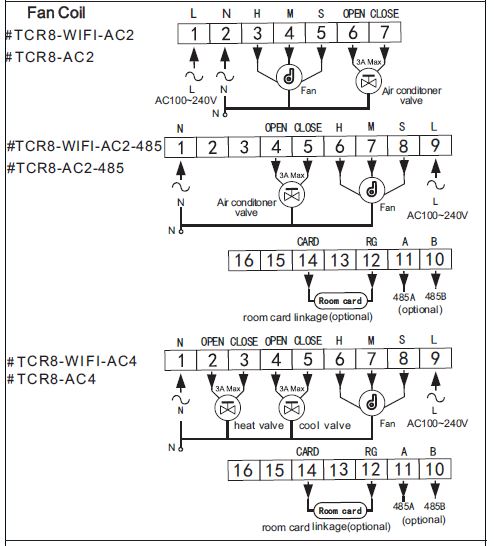

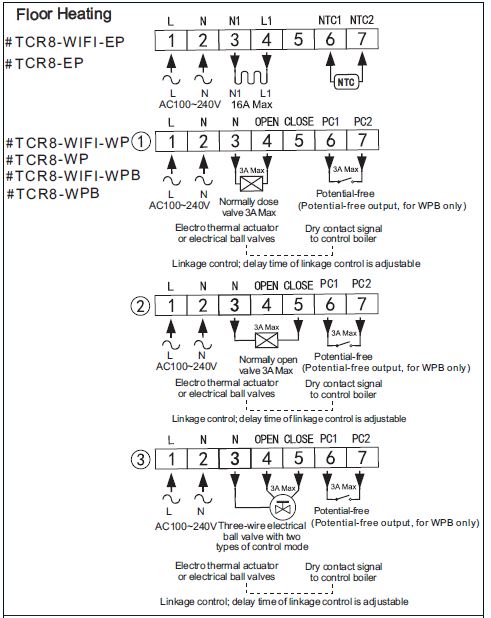

Connecting Diagram
The thermostat operates in full capacity in areas with the altitude of less than 2500 above sea level. Power rating of external load should be less than or equal to 80% rated power of the thermostat in areas with altitude of 2500m to 4200m.
