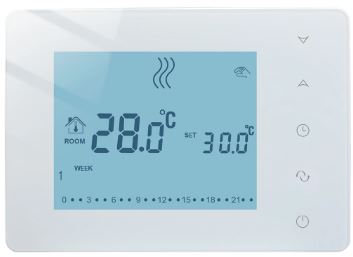

Beok CCT-10-X Water Floor Heating Thermostat
INTRODUCTION
The Beok CCT-10-X Water Floor Heating Thermostat is a specialized thermostat designed for controlling water-based floor heating systems. It provides precise temperature control and various programming features to ensure optimal comfort and energy efficiency. The thermostat is compatible with most water floor heating systems, making it a convenient choice for residential and commercial applications.
The Beok CCT-10-X thermostat features a user-friendly interface with a large LCD screen that displays temperature, time, and other relevant information. The touchscreen operation allows for easy navigation and adjustment of settings. With its sleek and modern design, the thermostat can seamlessly blend into any interior decor.
One of the key features of the Beok CCT-10-X thermostat is its programmability. Users can set up a weekly schedule with different temperature settings for different times of the day. This allows for personalized comfort and energy savings by reducing heating when not needed.
The thermostat also includes various modes to enhance usability and convenience. The vacation mode allows users to set a lower temperature during extended absences to save energy. The anti-freeze mode ensures that the floor heating system prevents freezing in colder conditions. Additionally, the thermostat supports both manual and automatic temperature control modes, providing flexibility in operation.
The Beok CCT-10-X thermostat is designed for easy installation and retrofitting. It can be easily mounted on a wall and connected to the water floor heating system. The thermostat requires a power supply connection and can also be powered by batteries as a backup option.
In terms of connectivity, the Beok CCT-10-X thermostat does not support WiFi or remote control capabilities. It is primarily intended for local control and manual adjustments. However, it offers precise temperature control and reliable performance for water floor heating systems.
Overall, the Beok CCT-10-X Water Floor Heating Thermostat provides an efficient and user-friendly solution for controlling water-based floor heating systems. Its programmability, intuitive interface, and compatibility with various systems make it a reliable choice for maintaining comfortable indoor temperatures while optimizing energy usage.
SPECIFICATION
- Model Number: CCT-10-X
- Brand Name: beok
- Origin: Mainland China
- Certification: CE
- Wattage: 170-240VAC 50\60HZ
- Type: 8 Channels Hub
- Working Temp: -20 ℃ ~ 60 ℃
- Storage Temp: -20~70℃
- Connecting Device1: Gas Boiler
- Connecting Device2: Actuators Driver
- Connecting Device3: Water Pump
- Connecting Device4: Wireless Thermostat
- Frequency: 467MHz
- Suitable for: Water Floor Heating System
- Controller Type: Multizone Central Heating
- Usage: For indoor use only
Central Heating System for Water Floors
In order to accomplish comfortable temperature control goals and lower energy consumption, the CCT-10-X wireless hub controller is utilized to regulate the gas boiler, circulating pump,or electric actuator.

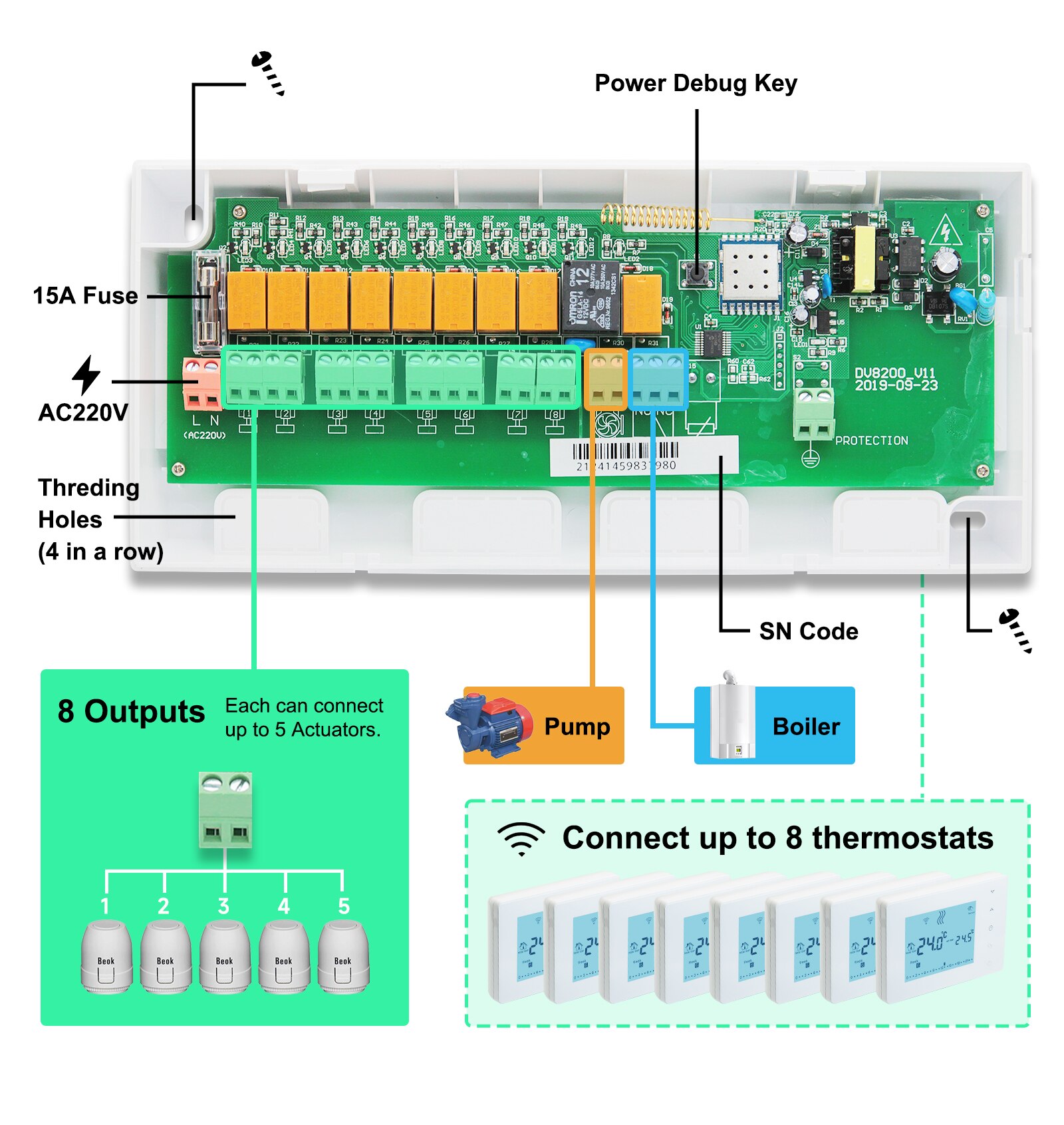

8-Channel Wireless Hub Controller
Add more thermostats to control up to 8 zones of heating if you have an existing multizone heating system.
NOTICE:
Up to 8 pcs BOT-X306-NR can be connected to one CCT-10-X.
CCT-10-X and BOT-X306-NR are wireless products, not Wi-Fi products, they can’t be controlled by phones!
Features
- Frost protection protects your pipes from freezing in winter.
- A child lock function is available on the thermostat.
- You can set a schedule to adjust your comfort temperature and save energy.
- Wireless Thermostat powered by AA batteries.
- The temperature sensor has an accuracy of 0.5°C.

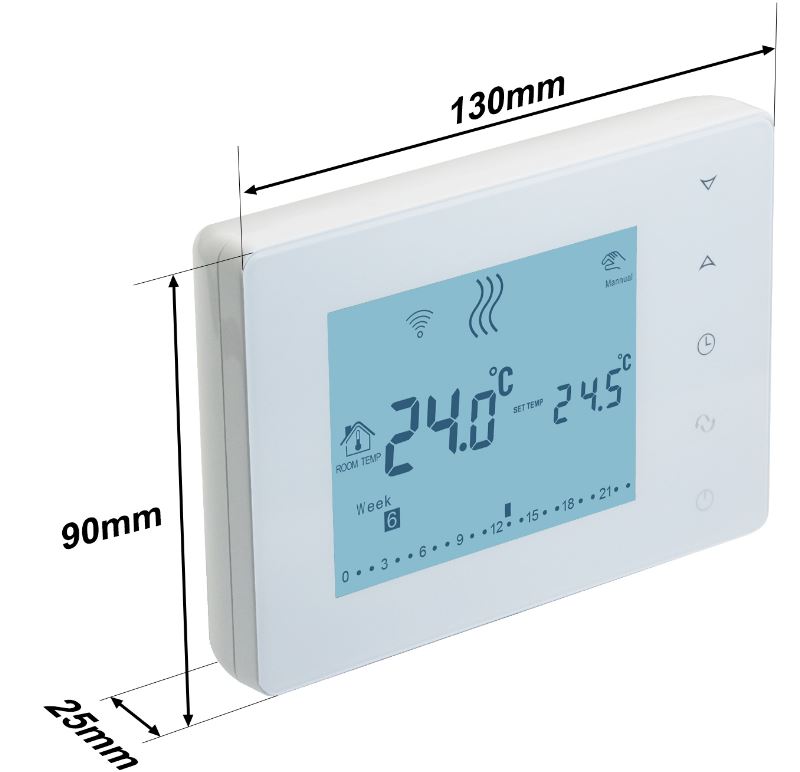

Dimension
How to operate
To operate the Beok CCT-10-X Water Floor Heating Thermostat, follow these steps:
- Power on the thermostat by connecting it to the electrical supply.
- The thermostat will display the current temperature. If you need to adjust the temperature, press the “Set” button on the thermostat.
- Use the arrow buttons (up and down) to set the desired temperature. Press the “Set” button again to confirm the temperature setting.
- The thermostat may have different operating modes. Press the “Mode” button to cycle through the available modes. Common modes include “Auto,” “Manual,” and “Holiday.”
- In the “Auto” mode, the thermostat will automatically control the temperature based on your programmed schedule. You can set different temperature levels for different times of the day.
- In the “Manual” mode, you can manually set and maintain a specific temperature. Use the arrow buttons to adjust the temperature as desired.
- If the thermostat has a “Holiday” mode, you can set a specific temperature to maintain while you are away for an extended period. This mode helps to conserve energy.
- Some thermostats have additional features such as a child lock function or a display backlight. Consult the user manual specific to your model to learn about these features and how to use them.
- If your thermostat supports WiFi connectivity, you may be able to control it remotely through a smartphone app. Refer to the user manual for instructions on connecting the thermostat to your WiFi network and setting up the remote control.
- It’s important to ensure that the thermostat is properly calibrated to accurately measure and control the temperature. Refer to the user manual for instructions on how to calibrate the thermostat if necessary.
- If you experience any issues or have specific programming requirements, consult the user manual or contact the manufacturer’s customer support for assistance.
Faqs
What is the Beok CCT-10-X Water Floor Heating Thermostat?
The Beok CCT-10-X is a thermostat specifically designed for controlling water-based floor heating systems.
How does the Beok CCT-10-X thermostat control water floor heating systems?
The thermostat connects to the water-based floor heating system and regulates the flow of hot water to control the temperature of the floor.
Is the Beok CCT-10-X thermostat programmable?
Yes, the thermostat is programmable, allowing you to set temperature schedules for different times of the day.
Can I control the Beok CCT-10-X thermostat remotely?
No, the Beok CCT-10-X thermostat does not support remote control capabilities. It is designed for local control and manual adjustments.
Does the Beok CCT-10-X thermostat have a touchscreen display?
Yes, the thermostat features a touchscreen display that allows for easy temperature adjustments and programming.
Is the thermostat compatible with all types of water floor heating systems?
The Beok CCT-10-X thermostat is compatible with most water-based floor heating systems, but it’s important to verify compatibility with your specific system before purchasing.
Can I set different temperature zones with the Beok CCT-10-X thermostat?
No, the Beok CCT-10-X thermostat is designed for single-zone temperature control and does not support multiple temperature zones.
Does the Beok CCT-10-X thermostat have a built-in sensor for floor temperature measurement?
Yes, the thermostat typically includes a built-in sensor that measures the floor temperature to regulate the heating system.
Can I manually override the programmed temperature settings?
Yes, you can manually override the programmed temperature settings on the Beok CCT-10-X thermostat for temporary adjustments.
Does the thermostat have a vacation mode?
No, the Beok CCT-10-X thermostat does not have a specific vacation mode. You would need to manually adjust the temperature settings for energy-saving purposes during your absence.
Is the Beok CCT-10-X thermostat compatible with voice control?
No, the Beok CCT-10-X thermostat does not support voice control functionality.
Can I view the current floor temperature on the thermostat?
Yes, the thermostat typically displays the current floor temperature on the touchscreen display.
Does the Beok CCT-10-X thermostat support anti-freeze protection?
Yes, the thermostat often includes anti-freeze protection to prevent the floor from freezing during cold temperatures.
Is the Beok CCT-10-X thermostat easy to install?
The thermostat is designed for relatively easy installation. However, it is recommended to consult a professional if you are unsure about the installation process or working with water-based heating systems.
Does the Beok CCT-10-X thermostat come with a warranty?
The warranty coverage for the Beok CCT-10-X thermostat may vary depending on the manufacturer and the seller. It is advisable to refer to the product documentation or contact the manufacturer for specific warranty information.
