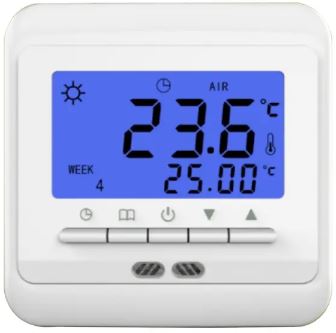

BAIYILUN B203-A015 Fan coil Smart 230v thermostat
Specification
- Place of Origin: Zhejiang, China
- Model Number: B203-A015
- Voltage range: 85-265VAC 50/60Hz
- After-sale Service: Free spare parts, Online technical support
- Application: Villa, Hotel, Apartment, Office Building, Hospital, School, Mall,
- Design Style: Contemporary, Modern
- Brand Name: BAIYILUN
- Product name: Smart wifi air conditioner tuya thermostat
- Warranty: 2 years
- Project Solution Capability: graphic design
- Set Temp. Range: 5-35°C
Introduction
The BAIYILUN B203-A015 is a smart thermostat designed specifically for use with fan coil units. It is designed to control the heating and cooling output of a fan coil unit, and is compatible with most standard 230V fan coil systems.
The BAIYILUN B203-A015 is a Wi-Fi enabled thermostat, which means that it can be controlled remotely using a smartphone or other mobile device. This allows you to adjust the temperature of your fan coil unit from anywhere, at any time.
The thermostat has a large, easy-to-read display, and is designed to be easy to use. It has a range of advanced features, including the ability to set schedules and create custom temperature profiles for different times of day and days of the week.
What Is In The Box
- Thermostat
- User manual
- Screws
- External sensor
On the surface
- A fantastic user interface that is both attractive and useful.
- The H9’s scratch-resistant and cleanable tempered glass screen;
- Compatible with standard 86mm square cassettes and 60mm European cassettes to meet all installation environments;
Regarding Usability
- Strict temperature regulation accuracy ( 0.5°C) to deliver the desired level of warmth;
- Turn off protection and securely store all of your settings;
- Display weather data and humidity levels
- Programmable configuration of 6 time periods per day, green energy saving, less expensive, more intelligent, and environmental protection; Preset adjustment of 5+1+1 mode in a week;
- Encourage the formation of product local groups and shares to obtain centralised control over an infinite number of items and many terminals;
- Full experience with the new voice control method, Tmall Genie, Amazon Echo, and Google Home;
Installation
The installation of the BAIYILUN B203-A015 thermostat is relatively straightforward and can be completed in a few simple steps:
- Remove the old thermostat from the wall and disconnect any wires.
- Connect the wires from the fan coil unit to the corresponding terminals on the back of the BAIYILUN B203-A015 thermostat.
- Mount the thermostat to the wall using the included mounting plate and screws.
- Turn the power back on at the circuit breaker and verify that the thermostat is receiving power.
- Follow the instructions in the BAIYILUN B203-A015 user manual to connect the thermostat to your home Wi-Fi network and complete the setup process.
Once the thermostat is installed and connected to your Wi-Fi network, you can control it using the BAIYILUN app on your smartphone or other mobile device. From the app, you can set schedules, adjust temperature settings, and access other advanced features of the thermostat.
Usage
- Power on the thermostat: The thermostat should be powered on by the time you complete the installation process.
- Adjust the temperature: Use the up and down arrows on the thermostat’s display to adjust the temperature to your desired setting.
- Set a schedule: You can use the BAIYILUN app to set a schedule for your thermostat. This allows you to have the temperature automatically adjusted at different times of the day, based on your preferences.
- Create custom temperature profiles: The BAIYILUN app also allows you to create custom temperature profiles for different times of the day and days of the week. For example, you can set a lower temperature at night to save energy, or a higher temperature during the day when you are home.
- Use the app: The BAIYILUN app allows you to control the thermostat from your smartphone or other mobile device. This gives you the ability to adjust the temperature remotely, view temperature history, and access other advanced features.
- Monitor energy usage: The BAIYILUN app also provides information about your energy usage, allowing you to monitor your heating and cooling costs and adjust your settings accordingly.
How To Operate
- Turn on the power to the fan coil unit at the circuit breaker.
- The thermostat will display the current temperature and allow you to adjust the temperature using the up and down arrows on the thermostat or through the app.
- To set a schedule, press the “schedule” button on the thermostat or open the app and navigate to the scheduling section. From there, you can set different temperature settings for different times of day and days of the week.
- The BAIYILUN app also allows you to control the thermostat remotely from anywhere with an internet connection. This is particularly useful if you want to adjust the temperature when you are away from home.
- The thermostat also has a number of advanced features, such as the ability to set temperature limits and adjust fan speed. These can be accessed through the settings menu on the thermostat or through the app.
How To Work
- Power on the thermostat and ensure it is connected to your Wi-Fi network.
- Set the date and time on the thermostat.
- Adjust the temperature setting by pressing the up or down arrow buttons on the thermostat. You can set a specific temperature or adjust it in increments of 0.5°C.
- Create a schedule by setting the desired temperature for different times of the day and days of the week. You can set up to 6 different temperature periods per day.
- Enable “Away” mode if you will be away from home for an extended period of time. This will set the temperature to a pre-determined level to save energy.
- Use the BAIYILUN app on your smartphone or other mobile device to remotely control the thermostat. From the app, you can adjust the temperature, set schedules, and access other advanced features of the thermostat.
- Monitor your energy usage by checking the thermostat’s energy reports. This will show you how much energy you have used over a given period of time and help you identify areas where you can save energy.
FAQS
Q: What is the voltage rating of the BAIYILUN B203-A015 thermostat?
A: The BAIYILUN B203-A015 thermostat is designed to work with standard 230V fan coil units.
Q: Does the thermostat require batteries?
A: No, the BAIYILUN B203-A015 thermostat is powered by the fan coil unit and does not require batteries.
Q: Can I use the BAIYILUN app to control multiple thermostats?
A: Yes, you can use the BAIYILUN app to control multiple BAIYILUN B203-A015 thermostats in different locations.
Q: Can I use the thermostat without Wi-Fi?
A: Yes, the thermostat can still be used without Wi-Fi, but you will not be able to control it remotely.
Q: Does the thermostat support voice control?
A: No, the BAIYILUN B203-A015 thermostat does not support voice control.
Q: Is the thermostat easy to install?
A: Yes, the thermostat is designed to be easy to install and comes with a user manual that provides step-by-step instructions.
Q: Can I set a different temperature for each day of the week?
A: Yes, the thermostat supports custom schedules for each day of the week.
Q: Can I set a vacation mode on the thermostat?
A: Yes, the thermostat supports a vacation mode that allows you to set a specific temperature for an extended period of time.
Q: Does the thermostat have a backlight?
A: Yes, the thermostat has a built-in backlight that makes it easy to read in low-light conditions.
Q: Can I adjust the fan speed using the thermostat?
A: No, the BAIYILUN B203-A015 thermostat does not have the ability to adjust fan speed.
Q: Can I lock the thermostat to prevent unauthorized access?
A: Yes, the thermostat has a lock function that allows you to prevent unauthorized changes to the temperature settings.
Q: Does the thermostat support multiple languages?
A: Yes, the thermostat supports multiple languages, including English, Spanish, French, and Chinese.
Q: Can I use the thermostat with a heat pump system?
A: No, the BAIYILUN B203-A015 thermostat is not designed to work with heat pump systems.
Q: How often does the thermostat update the temperature readings?
A: The thermostat updates the temperature readings every 5 seconds.
Q: Does the thermostat support automatic firmware updates?
A: Yes, the thermostat supports automatic firmware updates, which ensure that it always has the latest features and bug fixes.
BAIYILUN B203-A015 Fan coil Smart 230v Thermostat User Manual
