AZEL D-135E Non-Programmable Digital Thermostat
Go digital today with our new line of Digital Thermostats!
Azel Technologies introduces a thermostat that utilizes the latest digital technologies. The D-135E thermostat is a stand-alone microprocessor-based thermostat with a large LCD display that takes the guesswork out of reading the temperature. The D-135E maintains highly accurate temperature control without the programming hassle. The thermostat is designed to control room temperature by way of on/off controlling the heating equipment. The setpoint is displayed and can be changed easily by pressing the up or down arrow button. This simple-to-use accurate thermostat will replace most round, square, or rectangular thermostats. D-135E is environmentally safe, and mercury-free which requires no leveling, so there’s no hassle and no special disposal requirements. Replace your inaccurate, old-fashioned thermostats today with more accurate digital and easy-to-read D-135E.
FEATURES
- Deluxe standard Heat Only
- Reliable Digital Electronic Accuracy
- contains NO Mercury, environmentally safe
- Accurate Universal Replacement
- no Leveling Required
- Low Voltage (24 VAC) Systems
- Only 2 wires are needed to power the thermostat, no need to change the battery in the future
- EEPROM (memory) for setting backup
- Adjustable differential setting
- Anti-short cycle delay
- Display in °F
- Built-in Digital Control System
- Modern design
SPECIFICATIONS
- Display Format: Liquid Crystal Display(LCD)
- Power Supply: 24 Vac, 50-60H
- Contact Rating: 7A Resistive (3A inductive)
- Sampling Rate: 1 Minute
- Accuracy: ±1°F
- Temperature Control Range: 40-95°F
- User selectable 3 mins. anti-short cycle delay
- differential selection: 0.5, 1.0, 1.5, 2.0°F

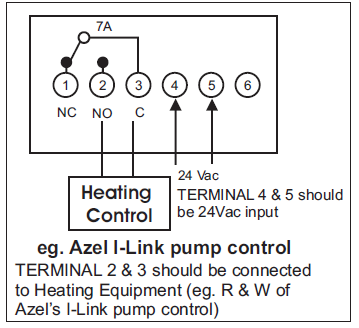

WIRING DIAGRAM
P.O. Box 53138
10 Royal Orchard Blvd.
Thornhill, Ontario, Canada L3T 7R9 Ph: 905-223-5567 Fax: 905-223-3778 Email: [email protected]
