Azel D-135E Non-PROGRAMMABLE Digital Thermostat Product Specifications Guide

Azel D-135E Non-PROGRAMMABLE Digital Thermostat

Instructions

Go digital today with our new line of Digital Thermostats!

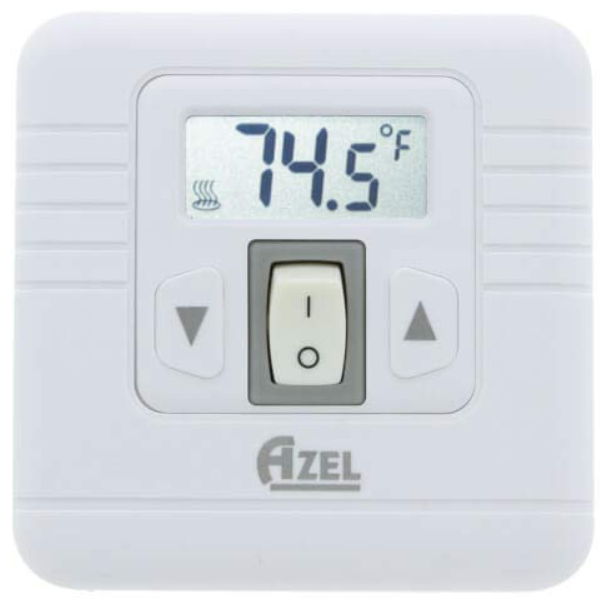

Azel Technologies introduces a thermostat that utilizes the latest digital technologies. The D-135E thermostat is a stand-alone microprocessor-based thermostat with large LCD display that takes the guesswork out of reading the temperature. The D-135E maintains highly accurate temperature control without the programming hassle. The thermostat is designed to control room temperature by way of on/off controlling the heating equipment. The setpoint is displayed and can be changed easily by pressing up or down arrow button. This simple-to-use accurate thermostat will replace most round, square or rectangular thermostats. D-135E is environmentally safe, and mercury-free which requires no leveling, so there’s no hassle, and no special disposal requirements.
Replace your inaccurate, old fashioned thermostats today with more accurate digital and easy to read D-135E.

FEATURES

• Deluxe standard Heat Only
• Reliable Digital Electronic Accuracy
• Contains NO Mercury, environmentally safe
• Accurate Universal Replacement
• No Leveling Required
• Low Voltage (24 VAC) Systems
• Only 2 wires needed to power thermostat, no need to change battery in the future
• EEPROM (memory) for setting backup
• Adjustable differential setting
• Anti-short cycle delay
• Display in °F
• Built-in Digital Control System
• Modern design

SPECIFICATIONS

• Display Format: Liquid Crystal Display(LCD)
• Power Supply: 24 Vac, 50-60Hz
• Contact Rating: 7A Resistive (3A inductive)
• Sampling Rate: 1 Minute
• Accuracy: 1°F
• Temperature Control Range: 40-95°F
• User selectable 3 mins. anti-short cycle delay
• Differential selection: 0.5, 1.0, 1.5, 2.0°F

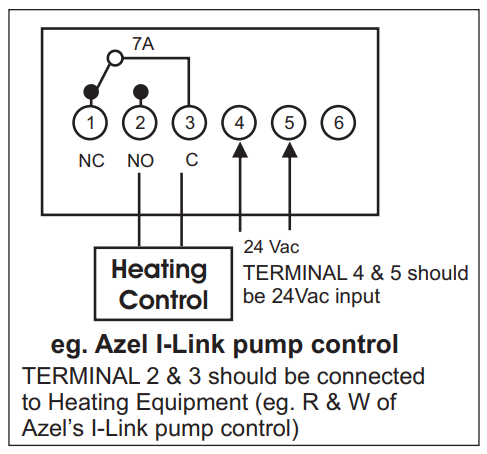

WIRING DIAGRAM

P.O. Box 53138
10 Royal Orchard Blvd.
Thornhill, Ontario, Canada L3T 7R9
Ph: 905-223-5567 Fax: 905-223-3778
Email: [email protected]
