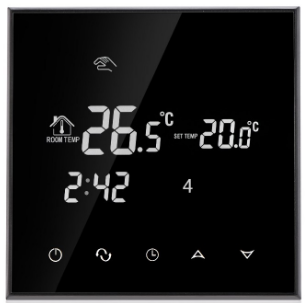

AnBang AB03WE Digital LCD WIFI Thermostat
Specifications
- Power Supply: AC12V 24V AC120/230V 50/60Hz
- Load current: 3A.16A,30A
- Switching differential: ±0.5K
- Limitation Range: 5~60°C(factory setting:35°C)
- Function: wifi function
- Power Consumption: <0.3W
- Limitation Range: 5~60°C(factory setting:35°C)
- Switch differential: 0.5°C~10°C adjustable factory setting 1°C
- Brand: AnBang
Introduction
The AnBang AB03WE Digital Thermostat is a reliable and user-friendly thermostat that offers precise temperature control and energy-saving features for your heating and cooling systems. Designed with simplicity and efficiency in mind, this thermostat helps you create a comfortable and energy-efficient environment in your home or office. With its digital display and intuitive controls, the AB03WE thermostat allows for easy programming and adjustment of temperature settings. The clear and legible display shows the current temperature, set temperature, and other relevant information at a glance, making it convenient to monitor and manage your indoor climate.
The AB03WE thermostat offers programmable scheduling capabilities, enabling you to set customized temperature schedules based on your daily routines. You can program different temperature levels for various times of the day, allowing for automatic adjustments to save energy when you’re away or asleep. This feature helps reduce heating and cooling costs while ensuring optimal comfort. Installation of the AB03WE thermostat is straightforward and user-friendly. It is compatible with a wide range of heating and cooling systems, including electric and gas furnaces, heat pumps, and radiant floor heating systems. The thermostat comes with a detailed installation manual that provides step-by-step instructions to guide you through the installation process.
The AB03WE thermostat also includes advanced features such as temperature calibration, anti-freeze protection, and memory backup. The temperature calibration feature allows for fine-tuning of the thermostat’s temperature readings, ensuring accurate control. The anti-freeze protection feature prevents freezing by activating the heating system when the temperature drops too low. Additionally, the memory backup ensures that your programmed settings are saved even in the event of a power outage.
What’s In the Box?
- AB03WE Thermostat
- Screws
- External Sensors
- Instruction
Features
- Interface for functioning on touchscreens
- 7-day programmed function for an operation that conserves energy
- Control output for heating equipment, on/off
- The heating symbol indicates when it is on
- Temperature control feature to safeguard the floor
- “Key-lock” feature to secure the preset settings (particularly appropriate for public spaces)
- Displaying the current room temperature while the thermostat is off

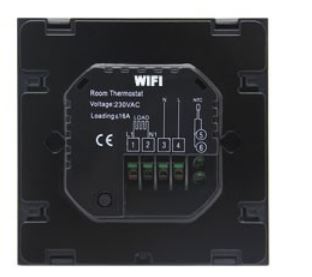

Thermostat Back Wiring Diagram AB03WE
- The electric loading appliances at Terminals 1 (L1) and 2 (N1) are thermostat-controlled.
- The thermostat’s AC 230V power source is located at terminals 3(N) and 4(L).
- External temperature sensors are located at terminals 5 and 6 (NTC).

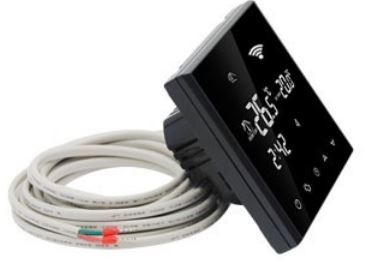

AB03WE Thermostat with a Floor Sensor
- Thermostat AB03WE has two sensors.
- External floor sensors are one.
- An internal air sensor serves as the other.
How To Install?
- Offset the power
Make sure that the electricity to your heating or cooling system is shut off at the circuit breaker or fuse box before beginning the installation procedure. This is essential for installation safety. - If necessary, remove the old thermostat.
Carefully remove the old thermostat from the wall if you’re replacing it. Take note of the wire labeling or color coding before disconnecting the wires from the previous thermostat. - Select an appropriate area
Choose a suitable wall location to install the AB03WE thermostat. Make sure it is simple to access and permits accurate temperature sensing. Keep it away from draughts, bright sunshine, or other heat sources that might compromise the temperature accuracy. - Install the thermostat’s foundation.
Using screws or other suitable fasteners, secure the thermostat base to the wall. Make sure it is installed firmly and level. - Organize the wires.
To discover the proper connections for your particular wiring layout, identify the wires coming from your heating and cooling system and consult the installation instructions. Using wire connectors or terminal screws, attach the wires to the corresponding terminals on the thermostat base to make sure the connections are secure. - Put the thermostat cover on
Snap the AB03WE thermostat cover into place after lining it up with the base. Make sure it is securely fastened and seated. - return the power
Restart the electricity at the circuit breaker or fuse box after making sure all connections are safe. The AB03WE thermostat must be turned on and prepared for installation. - Configure the thermostat
To finish the setup procedure, according to the directions in the thermostat’s user handbook. This may include customizing the date and time, temperature settings, and schedules to suit your tastes.
Frequently Asked Questions
Q: Is the AnBang AB03WE Digital Thermostat compatible with my heating and cooling system?
A: The AnBang AB03WE Digital Thermostat is designed to be compatible with a wide range of heating and cooling systems, including electric and gas furnaces, heat pumps, and radiant floor heating systems. However, it’s important to verify the compatibility of the thermostat with your specific system before installation. Consult the thermostat’s user manual or contact the manufacturer for detailed compatibility information.
Q: Can I program schedules with the AB03WE thermostat?
A: Yes, the AB03WE Digital Thermostat offers programmable scheduling capabilities. You can set customized temperature schedules based on your daily routines. This allows for automatic temperature adjustments, saving energy when you’re away or asleep and providing comfort when you’re at home.
Q: Does the AB03WE thermostat have a backlight display?
A: The availability of a backlight display may vary depending on the specific model of the AB03WE thermostat. Some versions of the thermostat may feature a backlight, making it easier to read the display in low-light conditions. Check the thermostat’s specifications or user manual for details on the specific model you have.
Q: Can I calibrate the temperature readings on the AB03WE thermostat?
A: Yes, the AB03WE Digital Thermostat typically offers a temperature calibration feature. This allows you to fine-tune the thermostat’s temperature readings to align with a separate temperature reference if needed. Refer to the thermostat’s user manual for instructions on how to access and adjust the temperature calibration settings.
Q: Does the AB03WE thermostat require batteries?
A: The power source for the AB03WE Digital Thermostat may vary depending on the specific model and version. Some versions may require batteries for operation, while others may be hardwired and powered directly by the heating or cooling system. Refer to the thermostat’s specifications or user manual to determine the power source requirements for your specific model.
Q: Can I control the AB03WE thermostat remotely?
A: The AB03WE Digital Thermostat does not typically offer remote control capabilities. It is designed for manual operation and programming at the thermostat itself. If remote control features are important to you, consider exploring other thermostat models that offer Wi-Fi connectivity and smartphone app control.
