AMATI HY08WIFI-WE Wifi Heating Thermostat
Specifications
- Power：90-240Vac 50/60HZ
- Sensor:：NTC(10k)1%
- Current：3A/250V(WW)；
- 16A/250V(WE)
- Set temperature range 1~70°C
- Default set temperature range： 5~35℃
- Accuracy：±0.5℃
- External：options（NTC）
- Size：55*55mm(without frame)
Display icon
Auto mode
Manual mode
Temporary manual mode
Holiday mode
On heating
External sensor
WiFi connection
WiFi disconnection
Cloud: AP distribution
Operation key
Turn on thermostat ,short press to display time, long press to turn off
Short press to choose manual or auto mode- Turn on the thermostat, and long press to program。
- Turn off the thermostat， long press to set advanced options

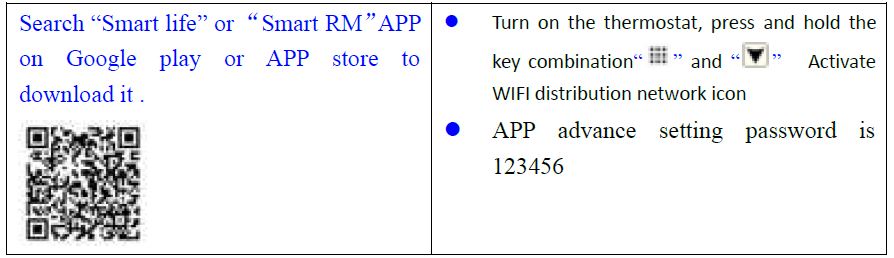

Turn on thermostat,long press to connect wifi
Decrease key, long press to unlock/locked, short press to display setting temperature
Increase key, long press to check temperature of external sensor
Setting time
Turn on the thermostat Long press to enter the setting interface, short press to choose 01, then short press to set time， and next press to choose hour,minute, and week

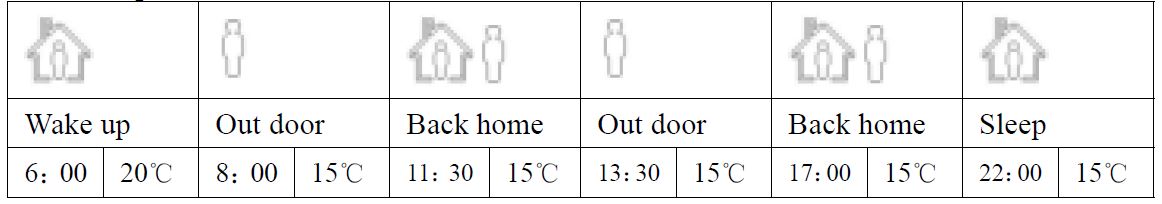

Programmable
Turn on the thermostat, long press to enter the setting interface, Short press to choose 02, then short to program, short press to choose hour, minute, and temperature. After finished, press to exist
Holiday mode
Turn on the thermostat, long press to enter the setting interface, short press to choose 03, then short to enter，After short press to choose days and temperature
Advance option A
| No. | Items | Parameter | Default |
| 1 | Measure Temperature
Calibration |
-9-+9℃ | -1 |
| 2 | Hysteresis temperature | 0.5-2.5℃ | 1℃ |
|
3 |
High temperature
protection hysteresis |
1~9 | 2 |
|
4 |
Choose sensor |
N1 :inner sensor N2: external sensor
N3: inner & external sensor |
N1 |
| 5 | Child lock | 0：half lock； 1：full lock | 0 |
|
6 |
High temperature protection |
1：35℃-70℃
2：less than 35℃，display【–】，mean closed this function |
45 |
|
7 |
Low temperature protection |
1：1℃-10℃
2：more than10℃，display【–】，mean closed this function |
5 |
|
8 |
The lowest of setting
temperature |
1-10 | 5 | ||
|
9 |
The highest of setting | 20-70 | 35 | ||
|
A |
Descaling function | 0 :closed
1 :open |
0 | ||
|
B |
Power with memory function | 0 ：Power with memory function 1： Shutdown power after power off
2： Shutdown power after power on |
0 | ||
| C | Programmable | 0：5+2 ; 1： 6+1 ; 2： 7 | 0 | ||
| D | Backlight time | 5~30S | 10 | ||
| E | |||||
| Reset | Long press until whole display | ||||
Return difference: limit valve of the external sensor is 45℃ for factory default (AA), the value of the external sensor control return difference (AB) is 2. when the temperature rises to 45℃, the relay stop working and will remind high-temperature production alarm. If the temperature decline to 43℃relay continue to work and heating alarm will be relieved. (it can be operated, only when the indoor temperature is lower than setting temperature )
Sensor fault display: please choose the correct working way of the built-in and external sensors, if choose wrongly or sensor fault (breakdown), “E1” or “E2” will be displayed on the screen. Thermostat will stop heating until the fault is eliminated

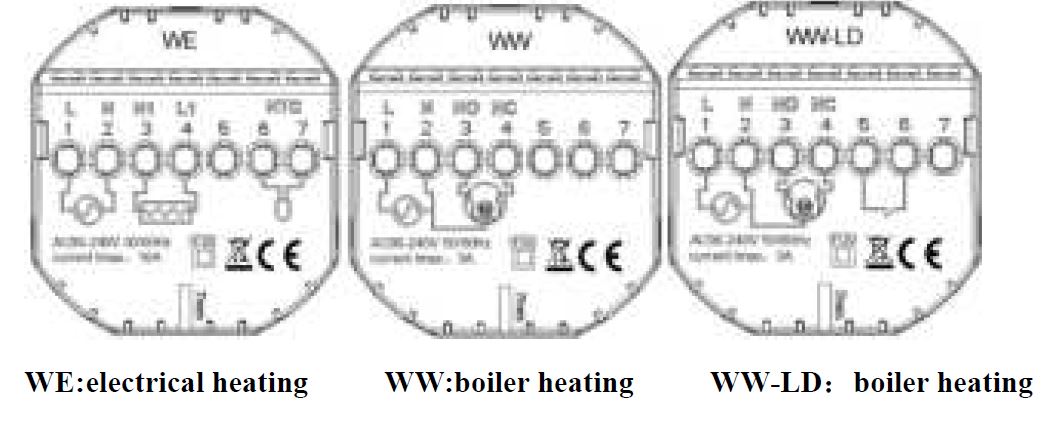

Wiring

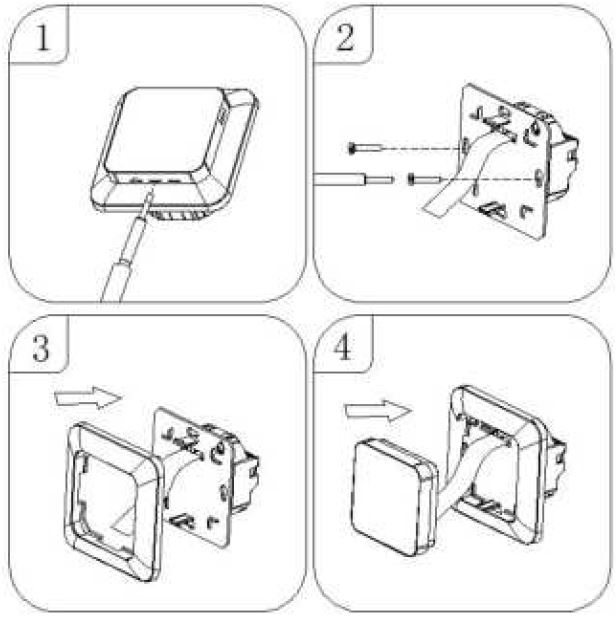

Installation
Warranty
We offer the warranty of 18 months, from the sales day. The products of our company can have lifetime warranty ,if it is not the quality problems, or beyond the warranty period, we will
charge for the after-sale service.
