AMATI 31322203 WIFI Digital Heating Thermostat User Manual

AMATI LOGO,

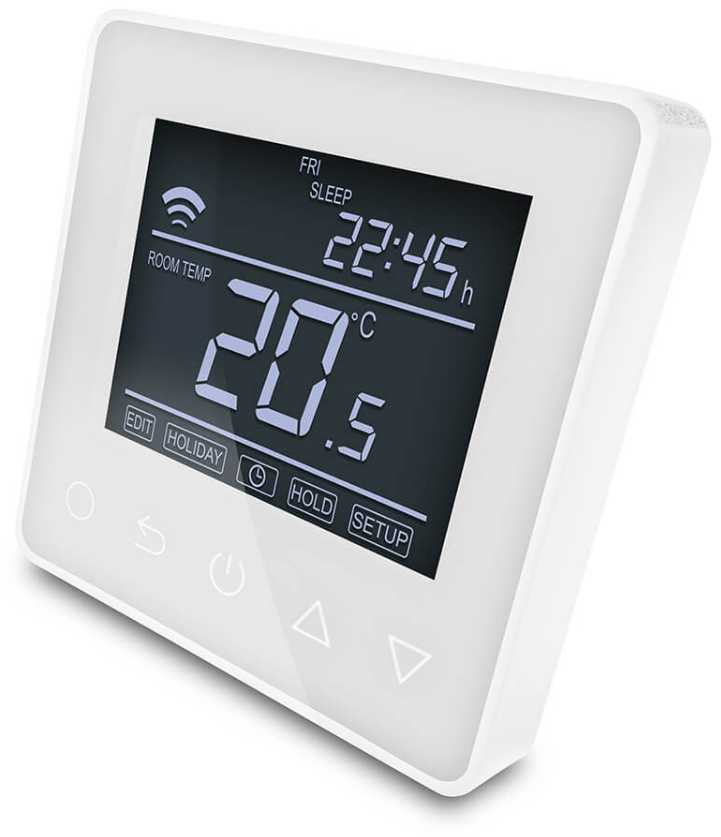

AMATI 31322203 WIFI Digital Heating Thermostat

AMATI 31322203 WIFI Digital Heating Thermostat User Manual-product

Many thanks for your selection of our products and services, and also for your trust and support to us.
Kindly remind: you should press any key to wake the thermostat before setting

Features

Appearance

  1. Standard total Size is 86*86mm
  2. Touch buttons to make simple operation
  3. The visible thickness above the wall is only 15mm86mm
  4. hidden box and 60mm European box
  5. Display size : 64*64mm
  6. Color: white

Functions

  1. Including built-in sensor and external sensor
  2. 0.5°C accuracy keeps temperature within the level you set.
  3. Children lock to prevent misoperation by children
  4. Data memory when power is off.
  5. Holiday mode make you enjoy more comfortable temperature in holiday
  6. The temperature of external sensor can be checked

Product Specifications

  • Power: 90-240Vac 50/60HZ
  • Range of temperature display::0~40°C
  • Display accuracy::0.5°C
  • Insulating condition: Normal environment
  • Probe sensor::NTC(10k)1%
  • Running program: Set per 1 week as a cycle
  • Contact capacity::3A/250V(WW);16A/250V(WE)
  • Output: Switch relay
  • Working environment temperature::0~90°C
  • Installation: Wall mounted or on battery seat
  • Range of temperature adjustment::5~35°C
  • Size(mm):86*86*27

Before wiring and installing

  1.  Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
  2. Check the ratings given in the instructions and on the product to make sure the produce is suitable for your application.
  3.  Installer must be a trained experienced service technician.
  4.  After installation is complete.check out produce operation as provided in these instructions

CAUTION: Electrical shock or equipment Damage Hazard. or short equipment circuitry.
Disconnect power supply before installation

Wiring Diagram

Wiring Diagram

Wiring Diagram 1

Water heating and gas wall-hung boiler heating, no contact wiring diagram,(disconnection when electric valve close)
Note: 3 & 4 connect with power, 5 & 6 connect with gas boiler,if closed type thermal actuator ,then connect 1&3,if open type thermal actuator ,then connect 2&3

Displays

Displays

Description of icon

Description of icon

Operation key

NO symbols represent
A symbols Turn ON/OFF:Short press to turn on/ turn off
B symbol 1 1  Short press to switch automatic mode and manual mode2  Turn  on  thermostat,  long  press     for  3-5  seconds  to  enter  into  programmable setting

3. Turn off thermostat, long press  for 3-5 seconds to enter into advanced A setting

C symbol 2 1 Confirm key: use it with  key 2 Only short press it to set the time
3 Turn on the thermostat, and long press it for 3-5 seconds to the holiday mode setting. AppearOFF, press  or change to ON, then press to confirm opening holiday mode 4 Turn off thermostat,long press to enter into advanced B setting
B symbol 3 1  Decrease key2  Long press to lock /unlock
D symbol 4  1  Increase key:2  Long press to inquire about external sensor temperature

3  In the Auto mode, press   or   enter to temporary manual mode

Programmable

5+2 (factory default),6+1 and 7 models 6 times period setting for user choose. In the advanced options choose the model of you need, under power-on state, long press for 3-5 seconds enter into programming mode setting, then short press choose: hour, minute, time period, and press and to adjust data, finish setting, about 10 seconds will automatic save and exist.

Programmable Programmable 1 Programmable 2 Programmable 3 Programmable 4 Programmable 5
Wake up Outdoor Back home Outdoor Back home Sleep
6:00 20℃ 8:00 15℃ 11:30 15℃ 13:30 15℃ 17:00 15℃ 22:00 15℃

The optimum comfort temperature is 18℃-22℃.

Advanced options A

Under turn off state, long press for 3-5 seconds to access the advanced A setting.
From A1 to AE, short press to choose the option, and adjust data by , , short press to switch next option.Remain about 5 seconds after finish setting will quit setting.

NO Setting Options Data Setting Function Factory Default
A1 Measure Temperature Calibration -9-+9℃ 0.5℃ Accuracy Calibration
A2 Temperature            control return difference setting 0.5-2.5℃ 1℃
A3 Children lock setting 0:half lock                     1:full lock 0
A4 Power       with      memory function 0:Power with memory function 1:Shutdown power after power off 2:Shutdown power after power on 0
A5 Backlight sleep brightness 0: 0% of brightness1: 50% of brightness

2: 100% of brightness

1
A6 Weekly          programming selection 0: 5+2       1:6+1           2 :7 0
A7 Setting           temperature lowest limit 1-10℃ 5℃
A8 Setting           temperature highest Limit 20-70℃ 35℃
A9 Protection          of temperature low 1 :1-10℃2:Exceed 10℃, screen display, Low temperature protection was cancelled. 5
AA Protection         of temperature high 1::35-70℃2:  low  than  35 ℃ ,  screen  display  —  ,high temperature protection was canceled 45
AB Return  different  for  high temperature protection 1-9 2
AC Running   temperature   of open window function 1:10-20℃2: low 10℃,screen display  ,open window function was canceled 15
AD Running    time    of window function open 10-20 min 10
AE Reset Long press until whole display

Advanced options B

Under turn off-state, long press TIMER for 3-5 seconds to access the advanced B setting

NO. Setting Options Data Setting Function Factory Default
BN Choose sensor N1: only inner sensor N2: only external sensor N3: both sensor N1
BC Descaling function 0: closed               1: open 0
BO version V1.0 1.0

Return difference: limit valve of the external sensor is 45℃for factory default (A6), the value of the external sensor control return difference (A3) is 2. When the temperature rise to 45℃, the relay stops working and will remind the high-temperature production alarm. If the temperature declines to 43℃relay continues to work and the heating alarm will be relieved. (it can be operated, only when the indoor temperature is lower than the setting temperature )

Sensor fault display: please choose the correct working way of the built-in and external sensor, if choose wrongly or sensor fault (breakdown), “E1” or “E2” will be displayed on the screen. Thermostat will stop heating until the fault is eliminated

Warranty:
We offer a warranty of 18 months, from the sales day. The products of our company can have a lifetime warranty, if it is not the quality problems, or beyond the warranty period, we will charge for the after-sale service
